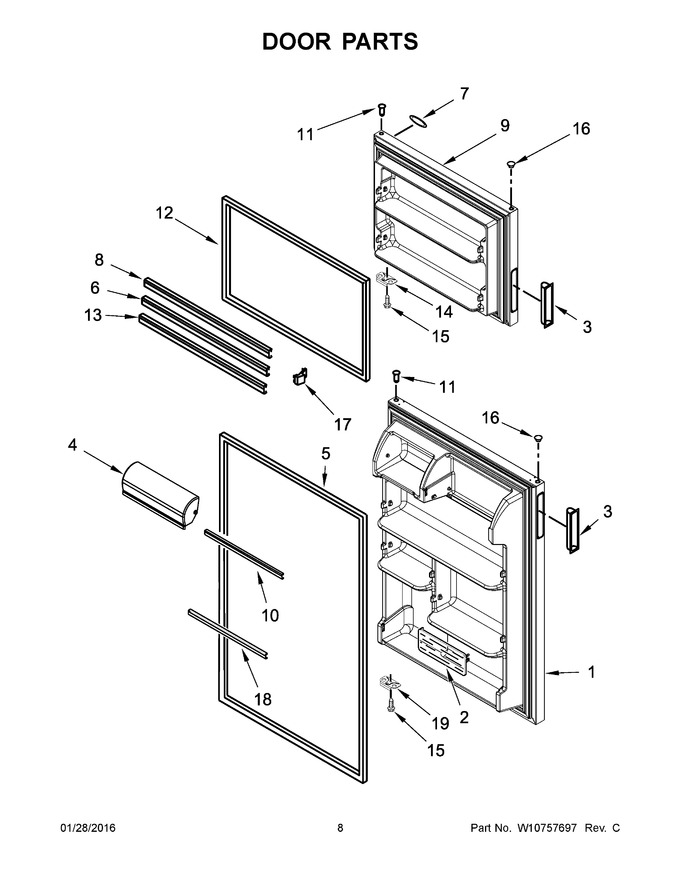

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10680726		Refrigerator Door (includes Door Gasket & Door Handle) (white)   (Replaces: W10680726)				$ 625.50
2	WP2188234		Door, Flip Up   (Replaces: 2188234)			Immediately	$ 51.70
3	W10352523		Handle, Cup (white)				$ 21.60
4	WP2218113		Door, Compartment   (Replaces: 2218113)			Immediately	$ 45.30
5	W10838574		Door Gasket, Magnetic (white)   (Replaces: W10638676)			Immediately	$ 79.44
6	W11170805		Trim, Door   (Replaces: W10678772)				$ 109.15
7	W11428492		Badge   (Replaces: W10200425)				$ 71.63
8	W11097831		Trim, Door   (Replaces: W10719703)				$ 10.54
9	LW10680729		Freezer Door (includes Door Gasket & Door Handle) (white)   (Replaces: W10680729)				$ 592.57
10	W11106290		Trim, Shelf Door   (Replaces: W10719701)			Immediately	$ 109.15
11	WP2183003		Thimble   (Replaces: 2262054)				$ 6.98
12	W10861499		Door Gasket, Magnetic (white)   (Replaces: W10638675)			Immediately	$ 88.56
13	W11126055		Trim, Door   (Replaces: W10719702)			Immediately	$ 109.15
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
16	WP2212648		Hole Plug (white)   (Replaces: 2212648)				$ 7.02
17	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 11.36
18	W11129820		Trim, Door   (Replaces: W10719700)			Immediately	$ 109.15
19	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 58.98
12A	W11229610		Door Gasket, Magnetic (black)   (Replaces: W10667843)			Immediately	$ 257.73
12B	W11036546		Door Gasket, Magnetic (grey)   (Replaces: W10638686)			Immediately	$ 156.90
16A	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 20.75
16B	WP2254517		Hole Plug (grey)   (Replaces: 2254517)			Immediately	$ 20.86
1A	LW10680725		Refrigerator Door (includes Door Gasket & Door Handle) (black)   (Replaces: W10680725)				$ 618.77
1B	LW10680727		Refrigerator Door (includes Door Gasket & Door Handle) (stainless)   (Replaces: W10680727)				$ 726.14
3A	W10174743		Handle, Cup (black)				$ 13.65
3B	W11395913		Handle, Cup (grey)   (Replaces: W10240002)				$ 44.16
5A	W11240749		Door Gasket, Magnetic (black)   (Replaces: W10678768)			Immediately	$ 257.73
5B	W11028007		Door Gasket, Magnetic (grey)   (Replaces: W10638687)				$ 265.49
9A	LW10680728		Freezer Door (includes Door Gasket & Door Handle) (black)   (Replaces: W10680728)				$ 593.15
9B	LW10680730		Freezer Door (includes Door Gasket & Door Handle) (stainless)   (Replaces: W10680730)				$ 661.46
