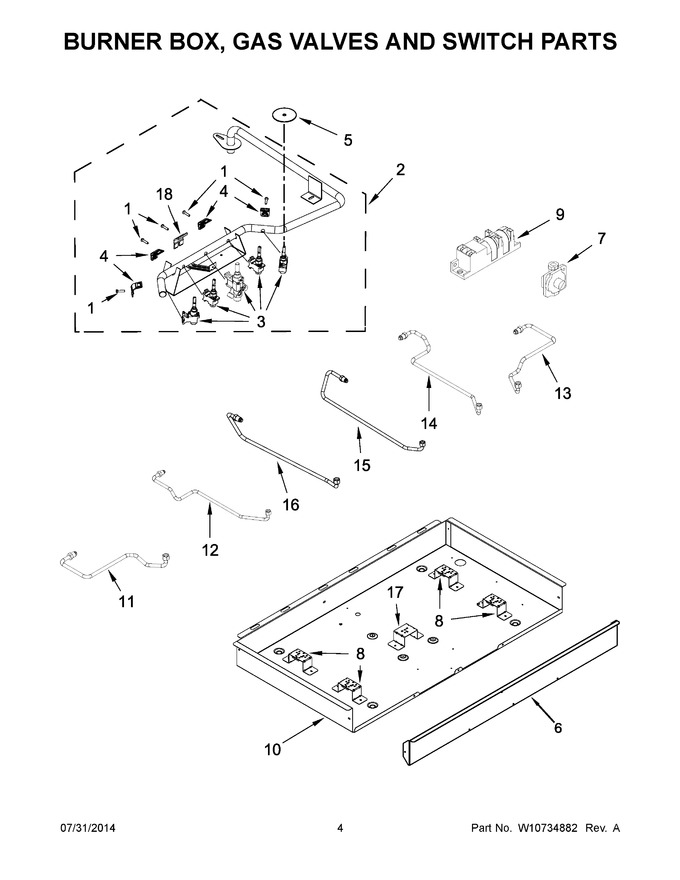

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw, Valve Bracket				$ 10.15
2	W11676622		Assembly, Pipe Manifold   (Replaces: W10594397)				$ 314.57
3	W11677628		Valve, Single (left Front)   (Replaces: W10594392)				$ 171.10
4	8287055		Bracket, Single Valve				$ 65.54
5	W10140571		Seal, Switch Shaft				$ 6.60
6	W10718141		Panel, Front   (Replaces: W10614951)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10132345)			Immediately	$ 177.34
8	W10594429		Bracket, Orifice Holder				$ 20.00
9	WPW10475149		Module, Spark (2+0 Filtered)   (Replaces: W10475149)			Immediately	$ 161.15
10	W10728414		Box, Burner		Appelez-nous	-
11	W10566305		Tubing, Gas Burner (left Front)		Appelez-nous	-
12	W10566306		Tubing, Gas Burner (left Rear)		Appelez-nous	-
13	W10566308		Tubing, Gas Burner (right Front)		Appelez-nous	-
14	W10566307		Tubing, Gas Burner (right Rear)		Appelez-nous	-
15	W10566296		Tubing, Gas Burner (center)		Appelez-nous	-
16	W10566297		Tubing, Gas Burner (center)		Appelez-nous	-
17	W10594430		Bracket, Orifice Holder				$ 26.81
18	8287056		Bracket, Dual Valve		Appelez-nous	-
3A	W11256503		Valve, Single (left Rear)   (Replaces: W10594391)			Immediately	$ 236.01
3B	W10859922		Valve, Single, (right Front)   (Replaces: W10594393)				$ 69.40
3C	W11712403		Valve, Single (right Rear)   (Replaces: W10597156)			Immediately	$ 86.00
3D	W11246817		Valve, Dual (center)   (Replaces: W10594389)				$ 213.81
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11561436		Harness, Main   (Replaces: W10539913)				$ 55.30
NI	W10392003		Cord, Power				$ 138.57
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	W10676661		Kit, Lp Conversion				$ 36.11
