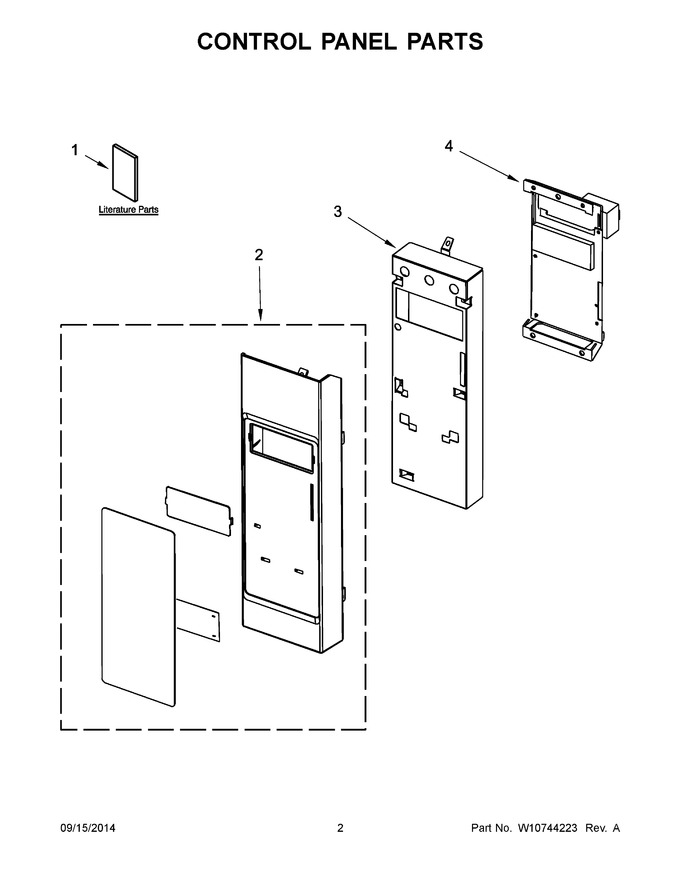

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10344702 | Instructions, Installation |
|
- | |||||
| 2 | W10259223 | Control Panel Assembly (includes Lens And Membrane Switch) (white) |
|
- | |||||
| 3 | W10455340 | Bracket, Control Panel |
|
- | |||||
| 4 | W10259219 | Microcomputer |
|
- | |||||
| 1A | W10336691 | Guide, Use And Care |
|
- | |||||
| 1B | W10217359 | Guide, Quick Reference |
|
- | |||||
| 1C | W10608087 | Tech Sheet |
|
- | |||||
| 2A | W10259222 | Control Panel Assembly (includes Lens And Membrane Switch) (black) |
|
- | |||||
| 2B | W10259226 | Control Panel Assembly (includes Lens And Membrane Switch) (stainless) |
|
- |
