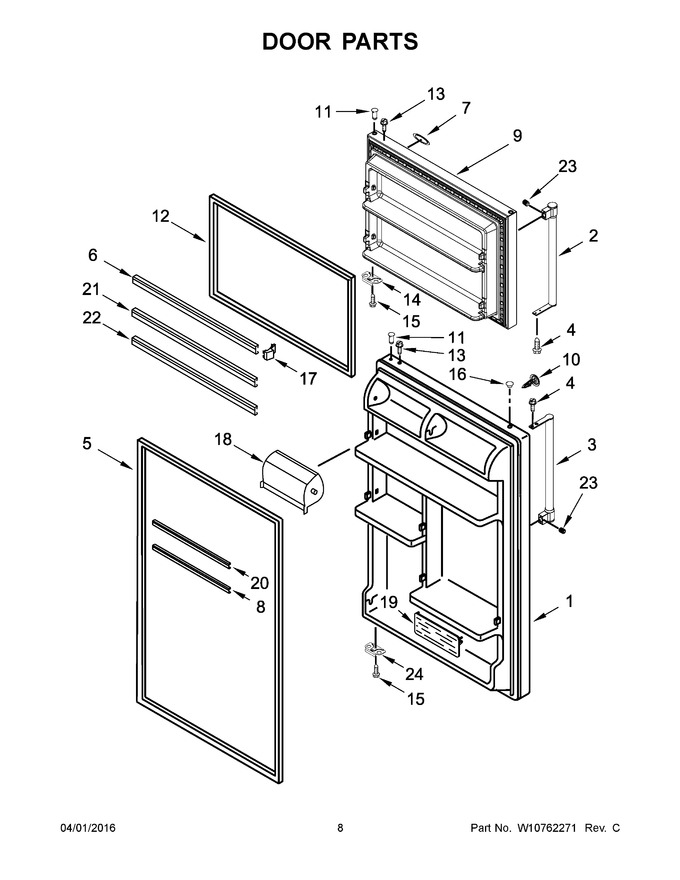

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10636410 | Refrigerator Door (includes Illustration 5) (white) (Replaces: W10636410) |
|
$ 587.72 | |||||
| 2 | W10691424 | Handle, Freezer (neptune Frost) |
|
$ 260.24 | |||||
| 3 | W10691396 | Handle, Refrigerator (neptune Frost) |
|
- | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.47 | ||||
| 5 | W10838574 | Door Gasket, Magnetic (white) (Replaces: W10638676) |
|
Immediately | $ 79.44 | ||||
| 6 | W10667855 | Trim, Door |
|
- | |||||
| 7 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 36.31 | ||||
| 8 | W10667848 | Trim, Door |
|
$ 63.42 | |||||
| 9 | LW10636409 | Freezer Door (includes Illustration 12) (white) (Replaces: W10636409) |
|
$ 571.93 | |||||
| 10 | W10830984 | Hole Plug (white) (Replaces: W10663736) |
|
$ 7.18 | |||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 6.98 | |||||
| 12 | W10861499 | Door Gasket, Magnetic (white) (Replaces: W10638675) |
|
Immediately | $ 88.56 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.15 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 16 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 18 | WP2218113 | Door, Compartment (Replaces: 2218113) |
|
Immediately | $ 45.30 | ||||
| 19 | WP2188234 | Door, Flip Up (Replaces: 2188234) |
|
Immediately | $ 51.70 | ||||
| 20 | W10667850 | Trim, Shelf Door |
|
- | |||||
| 21 | W10667851 | Trim, Door |
|
- | |||||
| 22 | W10667853 | Trim, Door |
|
$ 48.76 | |||||
| 23 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 14.21 | ||||
| 24 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 58.98 | |||||
| 10A | W10830983 | Hole Plug (black) (Replaces: W10663737) |
|
$ 16.75 | |||||
| 10B | W10830982 | Hole Plug (grey) (Replaces: W10663739) |
|
Immediately | $ 16.75 | ||||
| 12A | W11229610 | Door Gasket, Magnetic (black) (Replaces: W10667843) |
|
Immediately | $ 257.73 | ||||
| 12B | W11036546 | Door Gasket, Magnetic (grey) (Replaces: W10638686) |
|
Immediately | $ 156.90 | ||||
| 16A | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 16B | WP2254517 | Hole Plug (grey) (Replaces: 2254517) |
|
Immediately | $ 20.86 | ||||
| 1A | LW10668874 | Refrigerator Door (includes Illustration 5) (black) (Replaces: W10668874) |
|
$ 755.89 | |||||
| 1B | LW10638684 | Refrigerator Door (includes Illustration 5) (stainless) (Replaces: W10638684) |
|
$ 999.22 | |||||
| 5A | W11240749 | Door Gasket, Magnetic (black) (Replaces: W10678768) |
|
Immediately | $ 257.73 | ||||
| 5B | W11028007 | Door Gasket, Magnetic (grey) (Replaces: W10638687) |
|
$ 265.49 | |||||
| 9A | LW10668875 | Freezer Door (includes Illustration 12) (black) (Replaces: W10668875) |
|
$ 615.20 | |||||
| 9B | LW10638683 | Freezer Door (includes Illustration 12) (stainless) (Replaces: W10638683) |
|
$ 926.86 |
