SELECT A DIAGRAM

01 - Cover Sheet

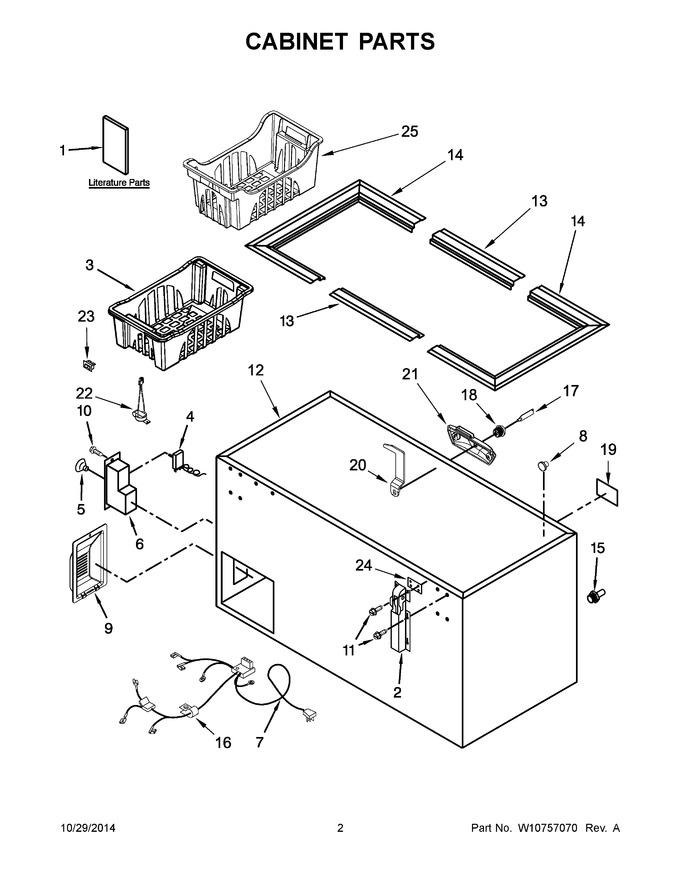

02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10668402		Use & Care Guide		Appelez-nous	-
2	W11192185		Hinge Assembly   (Replaces: W10670142)				$ 164.89
3	W10724199		Basket, Lower		Appelez-nous	-
4	4-35940-004		Thermostat				$ 228.09
5	W10738934		Knob, Thermostat		Appelez-nous	-
6	W10682893		Control Box				$ 28.19
7	W10628808		Wiring Harness		Appelez-nous	-
8	3-33211-001		Plug, Drain				$ 10.63
9	W10574468		Panel, Access				$ 24.78
10	3-24004-049		Screw		Appelez-nous	-
11	WPW10031790		Screw   (Replaces: 3-24004-005)			Immediately	$ 7.87
12	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
13	W11045298		Breaker Strip   (Replaces: 4-35010-005)		Appelez-nous	-
14	W11045300		Strip, End Breaker   (Replaces: 4-35009-003)				$ 80.74
15	W11663505		Adapter, Drain   (Replaces: 1-33178)				$ 15.45
16	549193		Clamp, Power Cord				$ 12.05
17	W10838052		Key   (Replaces: W10668135)				$ 34.86
18	W10664016		Barrel, Lock				$ 107.20
19	W11178521		Nameplate (white)   (Replaces: W10481434)			Immediately	$ 56.82
20	W10714897		Latch, Lock				$ 25.44
21	W10711162		Housing, Lock				$ 30.12
22	W10623221		Buzzer		Appelez-nous	-
23	W10749471		Switch, Alarm		Appelez-nous	-
24	1-17548-006		Spacer, Hinge				$ 18.64
25	W11553315		Basket, Upper   (Replaces: W10723246)				$ 88.53
1A	W10642201		Energy Guide		Appelez-nous	-
1B	W10723826		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
