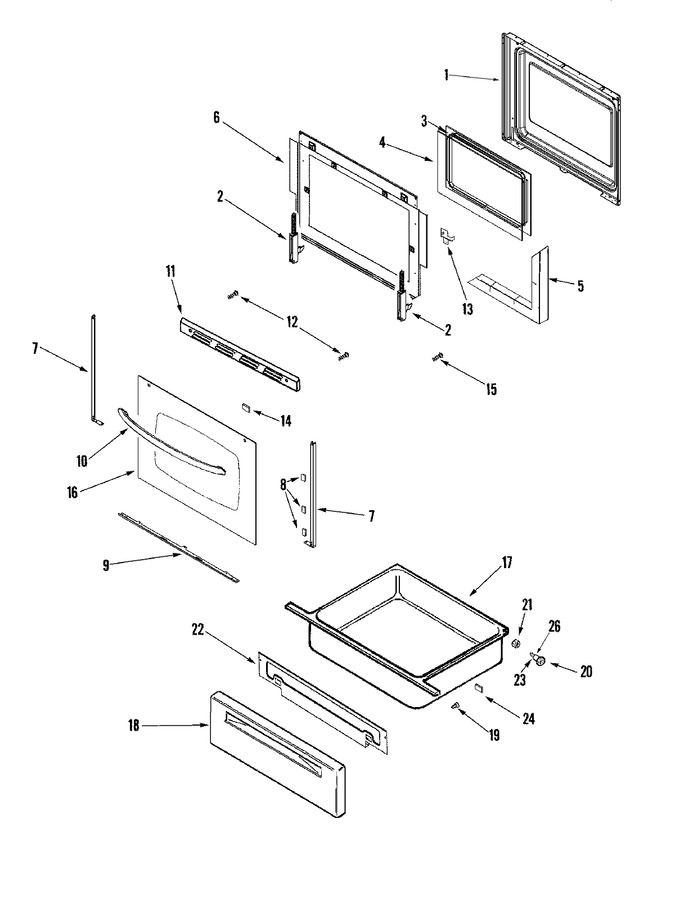

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74008926 | Lining, Door | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74010546 | Hinge, Door | 10 |
|
Immediately | $ 77.34 | |||
| 3 | 74003644 | Frame, Glass | 10 |
|
- | ||||
| 4 | 74003645 | Glass, Inner | 10 |
|
Immediately | $ 162.53 | |||
| 5 | 74003647 | Insulation, Oven Door | 10 |
|
- | ||||
| 5 | 74010564 | Insulation, Door | 10 |
|
- | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 74008744 | Baffle, Door | 10 |
|
- | ||||
| 7 | 74010560 | Trim, Side (blk) | 10 |
|
- | ||||
| 8 | 74009025 | Tape, Dbl Sided (blk) | 10 |
|
$ 8.60 | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74008889 | Trim, Bottom (blk) | 10 |
|
- | ||||
| 10 | 74008318 | Handle, Door (blk) | 10 |
|
- | ||||
| 11 | 74008931 | Trim, Top (blk) | 10 |
|
- | ||||
| 11 | WP98008545 | Screw (blk) (Replaces: 74009537) | 10 |
|
$ 15.94 | ||||
| 12 | WP74006515 | Screw W/washer (handle Mtg) (Replaces: 74006635) | 10 |
|
$ 7.29 | ||||
| 13 | 74009413 | Bracket, Door Handle (rt) | 10 |
|
- | ||||
| 13 | 74009412 | Bracket, Door Handle (lt) | 10 |
|
- | ||||
| 14 | WP74004224 | Tape, Single Sided (wht) (Replaces: 74004224) | 10 |
|
$ 10.53 | ||||
| 15 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 16 | 74003664 | Tape, Foil 29`` X 2`` | 10 |
|
- | ||||
| 16 | 74008853 | Glass, Door (wht) | 10 |
|
- | ||||
| 17 | WP3405F037-80 | Drawer, Service (Replaces: 74008877) | 10 |
|
$ 304.98 | ||||
| 18 | 74009035 | Panel, Drawer (blk) | 10 |
|
- | ||||
| 18 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 19 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 20 | WP74004078 | Roller, Drawer (Replaces: 74004078) | 10 |
|
Immediately | $ 10.70 | |||
| 21 | WP488130 | Nut (Replaces: 7103P082-60) | 10 |
|
$ 6.27 | ||||
| 22 | 74009519 | Shield, Drawer Heat | 10 |
|
- | ||||
| 23 | 74005231 | Shaft, Storage Drawer Roller | 10 |
|
$ 9.23 | ||||
| 24 | WP74005546 | Spacer, Rubber (Replaces: 74005546) | 10 |
|
$ 9.48 |
