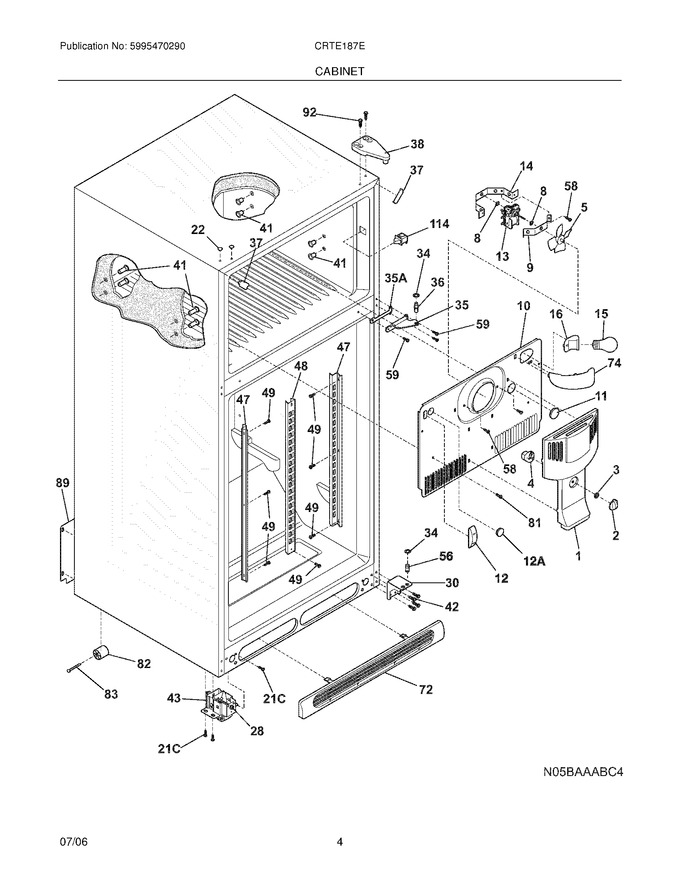

05 - Cabinet


07 - Shelves


09 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241652301		Cover-fan   (Replaces: 240355401)				$ 112.48
2	240367001		Knob-damper Control			Immediately	$ 57.64
3	5303001028		Nut,push-on		Appelez-nous	-
4	240367401		Damper-fan Cover				$ 41.32
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	240462009		Cover-evap Coil				$ 73.81
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	242193602		Plug-ice Maker Harness,rectangular   (Replaces: 241557601)				$ 14.41
13	5303918549		Motor-evap Fan   (Replaces: 240369702)			Immediately	$ 88.16
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
15	5304511738		Light Bulb   (Replaces: 241560701)			Immediately	$ 24.26
16	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
22	215774901		Plug-button,white ,upr Hinge Holes			Immediately	$ 18.20
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335501)			Immediately	$ 31.33
30	240314011		Bracket-lower Hinge,zinc   (Replaces: 240314001)			Immediately	$ 77.26
34	240311303		Washer,hinge ,nylon ,(2)			Immediately	$ 10.62
35	240313801		Bracket-ctr Hinge,zinc		Appelez-nous	-
36	241708002		Pin-center Hinge   (Replaces: 240516401)				$ 21.27
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.09
38	240313703		Upper Hinge,plastic ,white   (Replaces: 241622601)			Immediately	$ 32.27
41	5304500407		Grommet,shelf Mtg ,1.25`` ,lh ,(4)   (Replaces: 5308009759)			Immediately	$ 6.38
42	240578902		Screw-hinge Mtg,hex Head ,1/4-20 X 5/8   (Replaces: 240578901)			Immediately	$ 14.18
43	5304499445		Roller Assy,adjustable ,front ,(2)   (Replaces: 240335003)			Immediately	$ 31.33
47	218233300		Channel-shelf Mtg,side ,(2)				$ 86.05
48	5303292395		Channel-shelf Mtg,center				$ 157.34
49	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)   (Replaces: 218362500)				$ 12.05
56	240516502		Pin-lower Hinge   (Replaces: 240516501)				$ 72.80
58	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433202)				$ 15.17
59	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442701)				$ 8.34
72	241839405		Grille/kickplate,white   (Replaces: 240368205)				$ 60.96
74	240354301		Shield-light,frzr				$ 9.30
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 35.34
89	241733911		Cover-access,w/label   (Replaces: 241574607)				$ 50.51
92	241710601		Screw-hinge Mtg,hex Head ,1/4-20 X 1.00   (Replaces: 241624301)				$ 13.46
12A	241586701		Plug-foam-wtr-inlet,round				$ 17.72
12A	240374401		Plug-wtr Inlet Tube,round ,1``				$ 12.15
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
35A	240336802		Spacer-hinge,center			Immediately	$ 18.43
F114	241554901		Switch-light/lamp				$ 70.88
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
NI	241537701		Wiring Harness,freezer Section ,with Light		Appelez-nous	-
NI	5304434189		Seal-coil Cover   (Replaces: 240568601)				$ 66.63
NI	241500302		Screw,hex Washer Head ,8-18ab X 0.625		Appelez-nous	-
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 18.20
NI	218931001		Clamp-motor Wiring,nylon ,w/adhesive Tape		Appelez-nous	-
