SELECT A DIAGRAM

01 - Cover


03 - Doors


05 - Cabinet

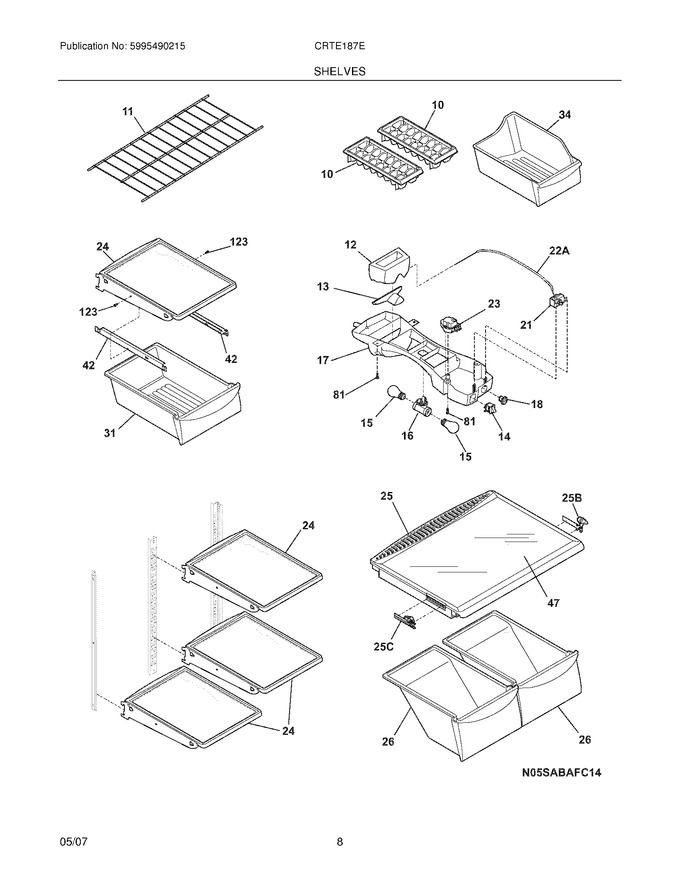

07 - Shleves


09 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray,ice Cube ,plastic			Immediately	$ 6.07
11	240358005		Shelf,freezer ,full-width ,wire		Appelez-nous	-
12	241542001		Diffuser,air ,top			Immediately	$ 74.42
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	240364201		Socket-light/lamp,dual   (Replaces: 240364202)				$ 100.50
17	240352701		Control Box		Appelez-nous	-
18	240360801		Knob-temp Control				$ 43.95
24	241616607		Shelf,fixed ,spill Safe   (Replaces: 241616602)				$ 146.81
25	240364787		Cover-crisper Pan   (Replaces: 240364714)			Immediately	$ 120.98
26	240337103		Pan-crisper,clear ,(2) ,no Graphics			Immediately	$ 148.35
31	240530811		Pan-meat,w/o Graphics ,clear			Immediately	$ 135.77
34	240385201		Container,ice Bin				$ 97.83
42	240365401		Track,meat Pan Hanger ,lh			Immediately	$ 51.26
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 56.70
47	240350608		Insert-pan Cover,glass   (Replaces: 241711219)			Immediately	$ 45.50
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 14.89
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
25B	241613501		Control-humidity,rh			Immediately	$ 12.05
25C	241613502		Control-humidity,lh				$ 47.78
F14	241554901		Switch-light/lamp				$ 70.88
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 72.31
F23	215846602		Timer-defrost   (Replaces: 241621501)			Immediately	$ 28.20
NI	241649208		Energy Guide		Appelez-nous	-
NI	240568606		Seal   (Replaces: 240568607)				$ 12.76
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	5304455649		Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,(2)				$ 17.01

    View Diagram in Separate Window       Print Part List
