01 - Cover Sheet
02 - Controls/induction Units

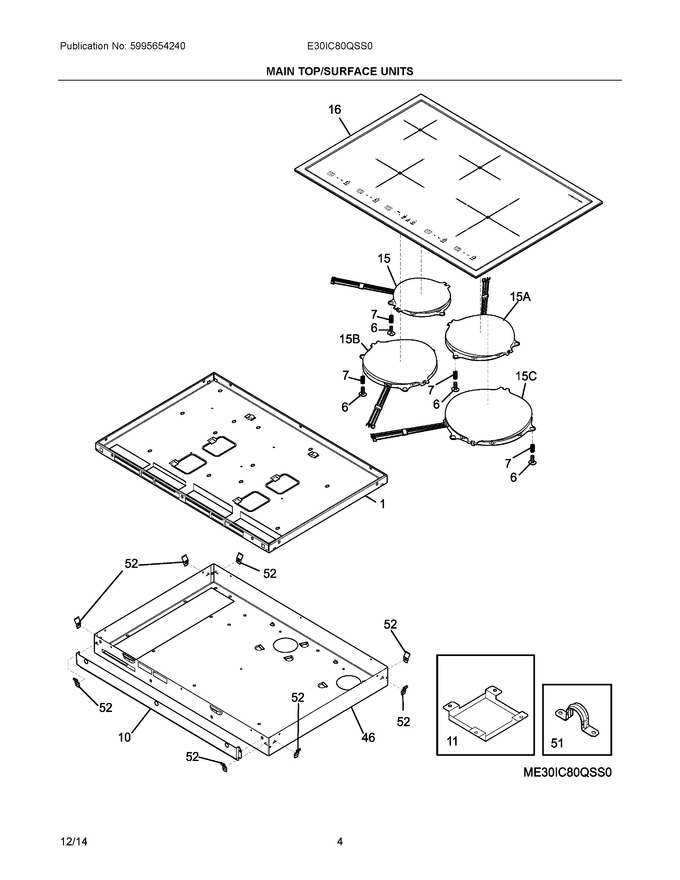

03 - Main Top/surface Units
04 - Wiring Diagram
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304499609 | Box, Inner |
|
- | |||||
| 6 | 318405000 | Pin, Guide, Elements, (12) |
|
$ 19.38 | |||||
| 7 | 318534300 | Spring, Guide Pin, (12) |
|
$ 7.09 | |||||
| 10 | 318534000 | Deflector, Outer |
|
- | |||||
| 11 | 318381731 | Deflector, Air |
|
- | |||||
| 15 | 318329241 | Element, Induction Coil, 140mm |
|
$ 229.03 | |||||
| 16 | 305638948 | Main Top, Assembly, Glass/steel, Black/stainless, W/uib Boards |
|
- | |||||
| 46 | 5304499610 | Box, Burner, Outer |
|
- | |||||
| 51 | 318389600 | Bracket, Conduit Mtg. |
|
$ 12.76 | |||||
| 52 | 387174602 | Bracket, Spring, Cooktop Mtg. |
|
$ 5.67 | |||||
| 15A | 318329242 | Element, Induction Coil, 180mm |
|
$ 268.46 | |||||
| 15B | 318329243 | Element, Induction Coil, 210mm |
|
$ 312.44 | |||||
| 15C | 318329244 | Element, Induction Coil, 260mm |
|
$ 363.59 | |||||
| NI | 5304462994 | Screw, 8-32 X 5/16 |
|
- | |||||
| NIA | 73218-3010 | Foam Tape, 3/8 (Replaces: 5303323177) |
|
$ 45.36 | |||||
| NIA | 5304424462 | Foam Tape, 1/2" X 14 |
|
Immediately | $ 69.77 |
