SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body

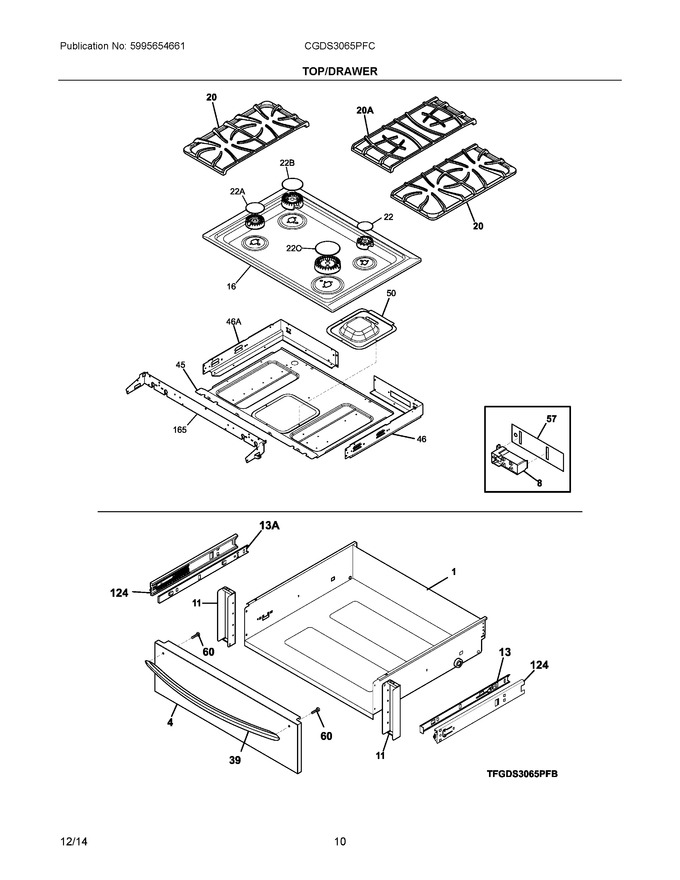

05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107317		Drawer   (Replaces: 318107313)				$ 144.09
4	318298829		Panel, Drawer, Stainless, Front   (Replaces: 318298826)				$ 210.92
8	808608802		Module, Spark   (Replaces: 316262405)			Immediately	$ 82.93
11	318298600		Bracket, Drawer Support, (2)				$ 62.69
13	318259504		Glide, Warmer, Inner Rh				$ 29.49
16	318569053		Maintop Assembly, (black)				$ 274.31
20	318560260		Grate, Burner, (black), (2)		Appelez-nous	-
22	5304508441		Cap, 5k Burner, Matte, (black)   (Replaces: 316261704)			Immediately	$ 35.04
39	316554010		Handle, Door/drawer, (stainless)   (Replaces: 316554008)			Immediately	$ 168.44
45	318578700		Panel, Burner Box, Bottom				$ 53.81
46	318568200		Box, Burner, Rh				$ 23.99
50	318578803		Panel, Service, Fan				$ 43.73
57	318295611		Panel, Service				$ 15.12
60	5303288572		Screw-handle Mtg		Appelez-nous	-
124	318330600		Glide, Drawer, Outer/rh & Lh, (2)				$ 77.97
165	318913300		Deflector, Box, Front				$ 48.67
13A	318259505		Glide, Warmer, Inner Lh				$ 33.03
20A	318560470		Grate, Black, Center				$ 290.46
22A	5304508442		Cap, 9.5k Burner, Matte, (black)   (Replaces: 316261804)			Immediately	$ 36.55
22B	5304508443		Cap, 14k Burner, Matte, (black)   (Replaces: 316262004)			Immediately	$ 46.01
22C	5304508468		Cap, 17k Burner, (black)   (Replaces: 316262104)				$ 49.45
46A	318568201		Box, Burner, Lh				$ 28.93
NI	316021109		Screw, 8-18 X 0.5, (chrome)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, (black)   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, (black)   (Replaces: 316021105)			Immediately	$ 27.50
NIA	318291504		Plate, Cook Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
