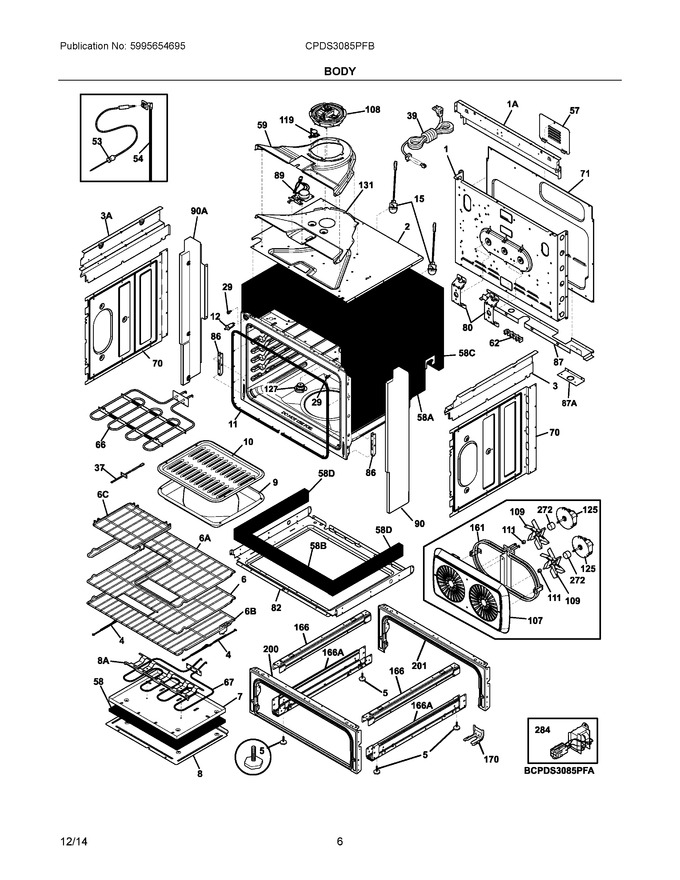

04 - Body
05 - Top/drawer
06 - Door
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 139017302 | Panel, Main Back |
|
- | |||||
| 2 | 139078200 | Shield, Insulation, Top |
|
- | |||||
| 3 | 318225230 | Panel, Bodyside, Upper Rh |
|
- | |||||
| 4 | 318927600 | Support, Auto Rack, (2) |
|
$ 23.25 | |||||
| 5 | 318175510 | Screw, Leveling, W/tee Nut (Replaces: 318175508) |
|
Immediately | $ 24.26 | ||||
| 6 | 139011600 | Rack, Oven, W/handle |
|
$ 124.74 | |||||
| 7 | 318297303 | Box, Bake Element |
|
$ 125.84 | |||||
| 8 | 318359500 | Panel, Service |
|
$ 140.09 | |||||
| 9 | 318138801 | Pan, Broileroptional Access0ry |
|
- | |||||
| 10 | 318126401 | Insert, Broiler Panoptional Access0ry |
|
- | |||||
| 11 | 807545502 | Seal, Oven Door, (gray) |
|
$ 140.34 | |||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| 15 | 5304528790 | Lamp Assembly, Round, Halogen, W/lens, W/bulb (Replaces: 139009000) |
|
Immediately | $ 20.56 | ||||
| 29 | 316517600 | Spacer, Oven Door |
|
$ 12.05 | |||||
| 37 | 5304504897 | Sensor, Oven Temp Probe (Replaces: 318562500) |
|
Immediately | $ 48.13 | ||||
| 39 | 318113111 | Cord, Electric |
|
$ 95.55 | |||||
| 53 | 5304504202 | Probe, Meat Temp, (red) (Replaces: 318601303) |
|
Immediately | $ 106.19 | ||||
| 54 | 139017201 | Receptacle Assy, Meat Probe |
|
$ 187.82 | |||||
| 57 | 316283600 | Cover, Access |
|
$ 12.50 | |||||
| 58 | 318294912 | Insullation, Bake Element |
|
$ 97.17 | |||||
| 59 | 139078002 | Duct, Cooling Fan, Top (Replaces: 139078000) |
|
$ 78.67 | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 66 | 5304521861 | Element, Broil, 8 Pass, 4000w (Replaces: 139000900) |
|
Immediately | $ 90.25 | ||||
| 67 | 5304521880 | Element, Bake, 2500w, 8 Pass (Replaces: 139026700) |
|
Immediately | $ 114.97 | ||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) (Replaces: 139000600) |
|
$ 72.05 | |||||
| 71 | 139014000 | Shield, Rear Wall, Lower |
|
- | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan (Replaces: 139021100) |
|
$ 14.89 | |||||
| 82 | 139008201 | Shield, Insulation, Lower |
|
- | |||||
| 86 | 318561100 | Receptacle, Hinge, (2) |
|
$ 21.23 | |||||
| 87 | 318260637 | Bracket, Cable Mtg. |
|
- | |||||
| 89 | 5304528836 | Motor, Latch Assembly (Replaces: 139078300) |
|
Immediately | $ 76.34 | ||||
| 90 | 5304511889 | Panel, Filler, (black), Rh (Replaces: 318296904) |
|
$ 74.42 | |||||
| 107 | 139001501 | Cover, Dual Fan, Convection |
|
$ 60.80 | |||||
| 108 | 318575612 | Motor, Cooling Fan |
|
Immediately | $ 196.61 | ||||
| 109 | 318398302 | Blade, Fan, Convection (Replaces: 139009100) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 119 | 807144901 | Thermostat, Safety, 110c Deg |
|
$ 58.39 | |||||
| 125 | 139008500 | Motor, Convection Fan |
|
Immediately | $ 216.23 | ||||
| 127 | 5304538693 | Tube Assembly, Vent, W/catalyst (Replaces: 139042600) |
|
Immediately | $ 10.03 | ||||
| 131 | 139078102 | Duct, Cooling Fan, Bottom (Replaces: 139078100) |
|
$ 64.49 | |||||
| 161 | 5304522063 | Element, Convection, Dual, 2500w (Replaces: 139006600) |
|
$ 132.71 | |||||
| 166 | 318298410 | Bracket, Base Support, (2) |
|
$ 75.83 | |||||
| 170 | 5304486410 | Kit, Anti Tip, W/brkt & Instru |
|
$ 158.50 | |||||
| 200 | 318298226 | Frame, Drawer, Front |
|
$ 107.00 | |||||
| 201 | 318298233 | Frame, Drawer, (black) (Replaces: 318298230) |
|
$ 45.36 | |||||
| 272 | 139021700 | Tube, Convection Fan |
|
$ 17.72 | |||||
| 284 | 316536100 | Transformer |
|
Immediately | $ 210.83 | ||||
| 166A | 318298403 | Bracket, Base Support, Lower, (2) |
|
- | |||||
| 1A | 139004600 | Panel, Main Back, Upper |
|
$ 67.62 | |||||
| 3A | 318225231 | Panel, Bodyside, Upper Lh |
|
- | |||||
| 58A | 139010900 | Insulation, Wrapper, Top & Sides |
|
$ 97.70 | |||||
| 58B | 139020300 | Insulation, Front |
|
- | |||||
| 58C | 139020201 | Insulation, Oven Back |
|
- | |||||
| 58D | 139020301 | Insulation, Sides, (2) |
|
- | |||||
| 6A | 139012800 | Rack, Oven, Half, W/handle |
|
$ 192.94 | |||||
| 6B | 139013101 | Rack, Auto (Replaces: 139013100) |
|
$ 159.26 | |||||
| 6C | 139013000 | Rack Insert, Half Rack |
|
$ 91.30 | |||||
| 87A | 318111806 | Plate, Cord Set Mtg |
|
$ 11.68 | |||||
| 8A | 318313601 | Bracket, Bake Element |
|
$ 71.45 | |||||
| 90A | 5304511890 | Panel, Filler, (black), Lh (Replaces: 318296905) |
|
$ 81.14 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, (black) (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 318235301 | Connector Assy., W/3 Lugs, & Instructions (Replaces: 318235300) |
|
$ 29.06 | |||||
| NI | 5304497427 | Harness, Wiring, Main |
|
- | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, (chrome) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, (black) (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1 |
|
$ 5.67 | |||||
| NI | 316303501 | Harness Assembly, Filter, Electrical, W/capacitors |
|
$ 84.91 | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", (black) |
|
$ 14.18 | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIA | 807597603 | Screw, Self Tapping, 8-18 X 11/32, (4) |
|
$ 9.22 | |||||
| NIA | 318579001 | Bracket, Wire |
|
$ 11.08 | |||||
| NIA | 318946500 | Bulb, Halogen, G9, 25w, 120v |
|
Immediately | $ 60.44 | ||||
| NIA | 316581300 | Retainer, Wire |
|
$ 4.26 | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 | |||||
| NIC | 318264200 | Plate, Grounding Strap |
|
$ 23.51 |
