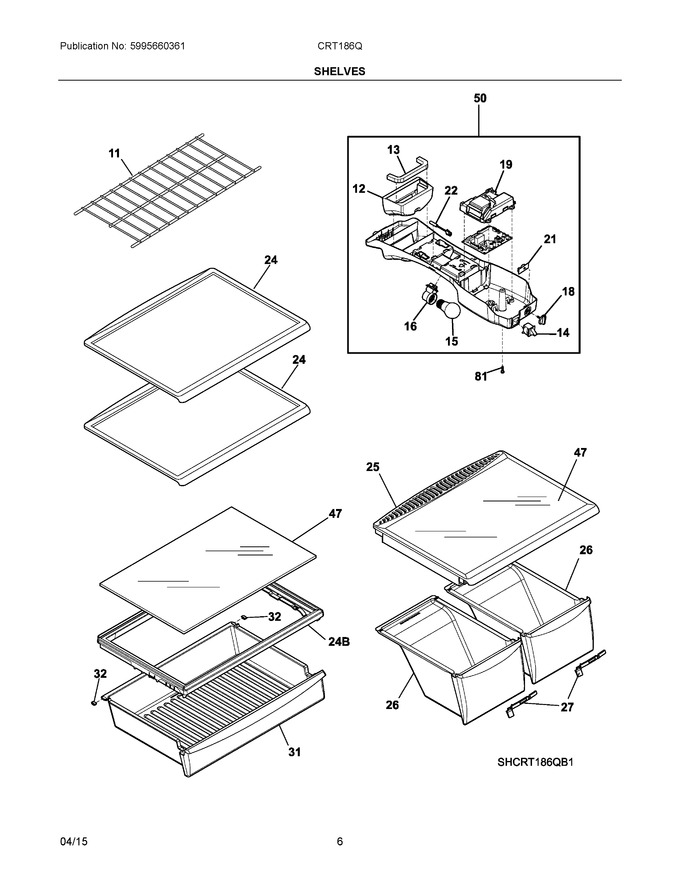

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358008		Shelf, Freezer				$ 91.80
12	5303918717		Diffuser, Air, Control Box   (Replaces: 5304498350)			Immediately	$ 34.89
13	242240602		Gasket, Air Diffuser			Immediately	$ 11.17
14	241554901		Switch-light/lamp				$ 70.88
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	241559801		Socket, Light   (Replaces: 242081801)				$ 72.68
17	5304507171		Control Box, Assembly, Complete, W/board & Harns   (Replaces: 5304498355)			Immediately	$ 327.02
18	242217001		Knob, Cold Control				$ 226.00
19	5304498427		Housing, Board		Appelez-nous	-
21	5304501856		Board, User Interface, Potentiometer   (Replaces: 242231601)			Immediately	$ 766.96
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
24	240358926		Shelf-"spill-safe", Sliding   (Replaces: 241730401)			Immediately	$ 129.17
25	242201802		Cover-crisper Pan			Immediately	$ 123.10
26	242218505		Pan, Crisper, (2), W/humid Cntl   (Replaces: 242218503)				$ 147.13
27	242215901		Slide, Humidity Contrl				$ 18.95
31	242322201		Meat Pan, Fw Pantry, W/slide Clips				$ 266.47
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 45.50
50	5303918673		Control Box, Assembly, Complete, W/board & Harns			Immediately	$ 349.61
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
24B	242218602		Cover, Deli Pan, Full Width, W/slide   (Replaces: 242218601)			Immediately	$ 121.78
NI	5304498434		Service Data Sheet		Appelez-nous	-
NIA	241705801		Spacer-shelf				$ 7.09
NIA	240349801		Clip-slide, Pan				$ 20.48
NIA	5304498462		Shield, Heat				$ 20.48
