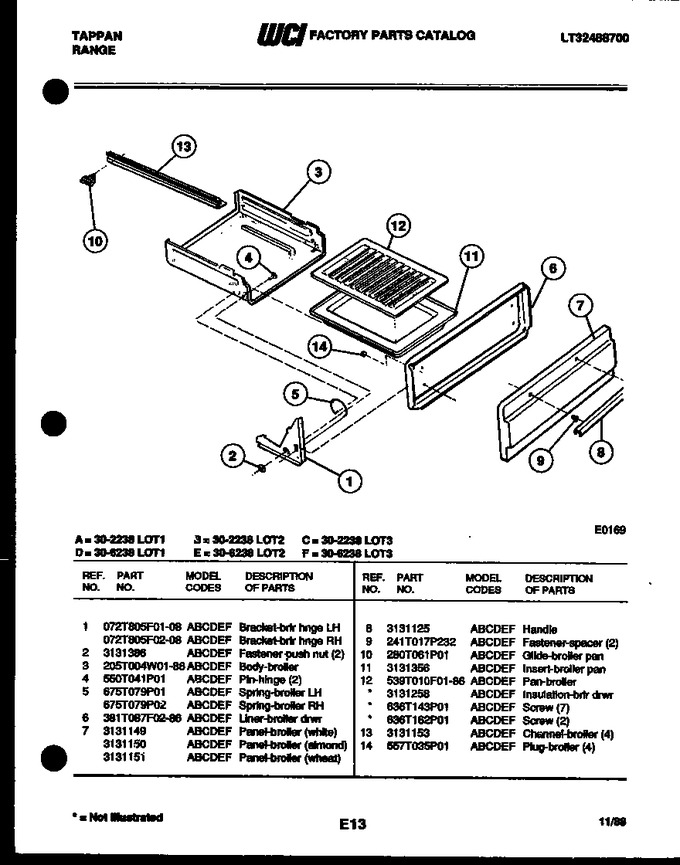

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	072T805F01-08		Bracket, Broiler Hinge		Appelez-nous	-
2	3131386		Fastener, Push Nut (2)		Appelez-nous	-
3	205T004W01-86		Body, Broiler		Appelez-nous	-
4	550T041P01		Pin, Hinge (2)		Appelez-nous	-
5	675T079P01		Spring-broiler Lh		Appelez-nous	-
6	381T087F02-86		Liner-broiler Drwr		Appelez-nous	-
7	3131151		Panel-broiler (wheat)		Appelez-nous	-
8	3131125		Handle		Appelez-nous	-
9	241T017P232		Fastener, Spacer (2)		Appelez-nous	-
10	280T061P01		Glide-broiler Pan		Appelez-nous	-
11	3131356		Insert, Broiler Pan		Appelez-nous	-
12	539T010F01-86		Pan, Broiler		Appelez-nous	-
13	3131153		Channel, Broiler (4)		Appelez-nous	-
14	557T035P01		Plug, Broiler (4)		Appelez-nous	-
12A	3131258		Insulation-brlr Drwr (non-illustrated)		Appelez-nous	-
12B	636T143P01		Screw		Appelez-nous	-
12C	636T162P01		Screw (2) (non-illustrated)		Appelez-nous	-
1A	072T805F02-08		Bracket, Broiler Hinge		Appelez-nous	-
5A	675T079P02		Spring-broiler Rh		Appelez-nous	-
