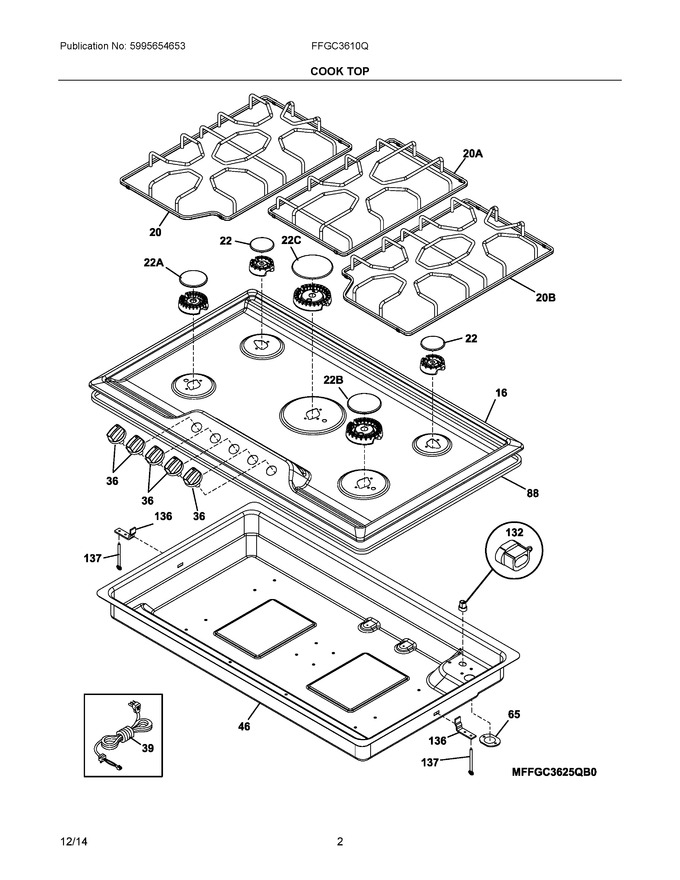

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	809218327		Main Top, Assembly, (stainless)		Appelez-nous	-
20	5304498874		Grate, Burner, (black), Left Hand		Appelez-nous	-
22	5304508441		Cap, 5k Burner, Matte, (black)   (Replaces: 316261704)			Immediately	$ 35.04
36	5304498814		Knob, Burner, (stainless)		Appelez-nous	-
39	305574902		Power Cord, Electrical, Supply				$ 69.46
46	5304498877		Burner Box		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
88	5304498879		Gasket, Main Top				$ 115.03
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
20A	5304498875		Grate, Burner, (black), Center		Appelez-nous	-
20B	5304498876		Grate, Burner, (black), Right Hand		Appelez-nous	-
22A	5304508442		Cap, 9.5k Burner, Matte, (black)   (Replaces: 316261804)			Immediately	$ 36.55
22B	5304508443		Cap, 14k Burner, Matte, (black)   (Replaces: 316262004)			Immediately	$ 46.01
22C	5304508468		Cap, 17k Burner, (black)   (Replaces: 316262104)				$ 49.45
NI	305338601		Screw, (2)				$ 4.26
NI	5304498878		Insulation, Cooktop		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
