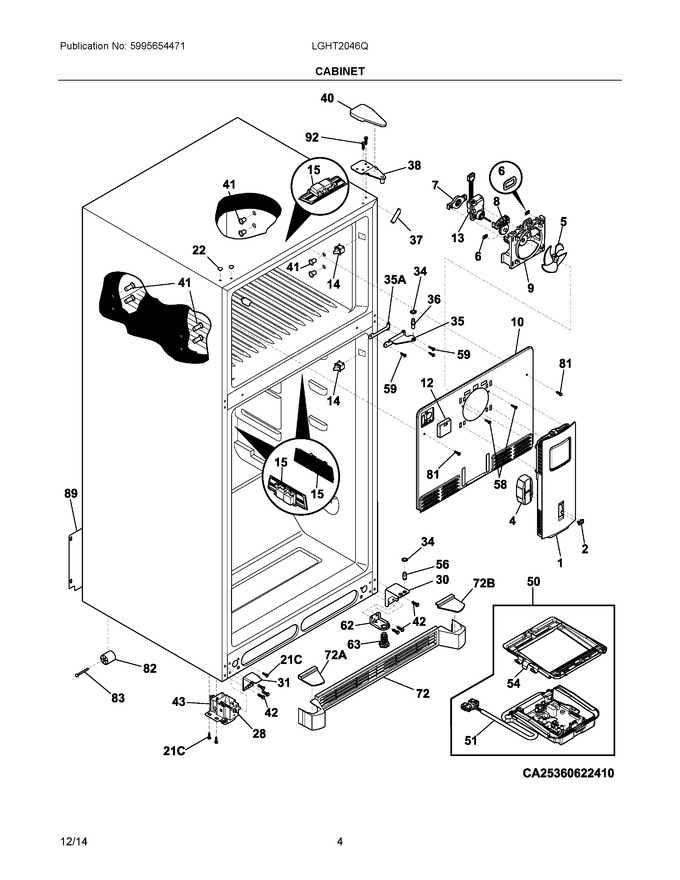

03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242265401		Cover, Evaporator Fan		Appelez-nous	-
2	242249002		Knob, Sliding, Damper   (Replaces: 242229401)			Immediately	$ 211.91
4	242294704		Damper, Fan Cover   (Replaces: 242229501)				$ 100.48
5	242219302		Fan Blade, Evaporator			Immediately	$ 17.44
6	5304497413		Ring, Locking, (2)			Immediately	$ 5.31
7	242287501		Grommet, Evaporator Fan, Rear			Immediately	$ 17.72
8	242237301		Grommet, Evaporator Fan, Front				$ 17.44
9	242229301		Shroud Bracket, Evaporator Fan			Immediately	$ 30.47
10	242239404		Cover, Evaporator Coil, 21'				$ 72.05
12	5304498990		Cover, Connection, Ice Maker		Appelez-nous	-
13	242077705		Motor-blower, 13   (Replaces: 242077701)			Immediately	$ 142.27
14	241554901		Switch-light/lamp				$ 70.88
15	216867800		Light Assembly, Led, W/lens & Board   (Replaces: 5304498911)				$ 22.42
22	215774922		Plug-button, Gray, Upr Hinge Holes				$ 19.72
28	5304499445		Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special   (Replaces: 240335502)			Immediately	$ 31.33
30	240314014		Bracket-lower Hinge, Gray				$ 51.57
31	5304498924		Support, Cover, Toe Grille				$ 18.43
34	240311303		Washer, Hinge, Nylon, (2)			Immediately	$ 10.62
35	240313807		Bracket-ctr Hinge, Gray				$ 21.60
36	240516402		Pin-center Hinge		Appelez-nous	-
37	242161206		Trim-cabinet Corner, Gray, (2)				$ 10.62
38	240313703		Bracket-upper Hinge			Immediately	$ 32.27
40	240354408		Cover-upper Hinge, Gray				$ 12.06
41	5304500407		Grommet, Shelf Mtg, 1.25", Lh, (4)   (Replaces: 5308009759)			Immediately	$ 6.38
42	240578902		Screw, Hex Head, 1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy, Adjustable, Front, (2)   (Replaces: 240335005)			Immediately	$ 31.33
50	5303918679		Control And Housing, Assembly, Complete, W/harness				$ 289.17
51	809170801		Harness, Wiring, Main Board				$ 90.72
54	807854301		Support, Housing, Main Board				$ 45.36
56	240516502		Pin-lower Hinge				$ 72.80
58	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
59	240442708		Screw-#10-32 X 3/4, Gray   (Replaces: 240442709)				$ 8.34
62	5304498914		Bracket, Anti Tip, Gray		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	5304498916		Toe Grille, Front, Gray   (Replaces: 5304498917)				$ 38.28
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
82	240335202		Roller, Compressor Base, Rear				$ 21.27
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
89	241733911		Cover-access, With Label   (Replaces: 241733907)				$ 50.51
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg				$ 13.46
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
35A	240336804		Spacer-hinge, Center, Gray				$ 13.46
72A	5304498922		Cover, Lower Hinge, Gray, Lh				$ 14.89
72B	5304498923		Cover, Lower Hinge, Gray, Rh				$ 14.89
NI	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 18.20
NI	218990901		Clip-wire				$ 74.42
NI	240396802		Clamp, Tube/wiring, Nylon, Black/natural		Appelez-nous	-
NIA	241500303		Screw, Hex Washer Head, 8-18ab X 1/2			Immediately	$ 4.55
NIA	5304498949		Washer, Steel, (2)		Appelez-nous	-
NIA	240568606		Seal-coil Cover				$ 12.76
NIA	218515401		Clip-grille				$ 17.72
NIB	5304453707		Screw, Quad Hilo, #8-18, (2)   (Replaces: 241953901)			Immediately	$ 15.92
NIC	5304521789		Harness, Wiring, Freezer Section, W/defrost Therm   (Replaces: 242213502)			Immediately	$ 95.15
