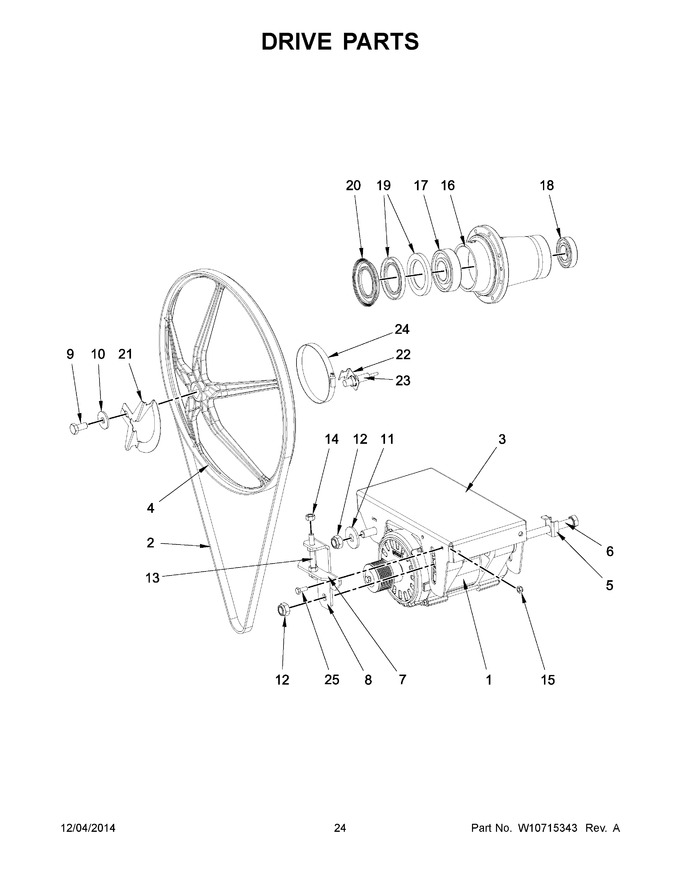

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10760684 | Motor With Pulley (.75kw/230v/75hz) |
|
- | |||||
| 2 | W10713980 | Belt |
|
- | |||||
| 3 | W10713984 | Motor Bracket |
|
- | |||||
| 4 | W10713992 | Pulley, Drum |
|
- | |||||
| 5 | W10713995 | Lock, Bolt Head |
|
- | |||||
| 6 | W10713997 | Bolt M12x180 |
|
- | |||||
| 7 | W10714001 | Tensioning Bracket - Rigid |
|
- | |||||
| 8 | W10714002 | Tensioning Bracket - Movable |
|
- | |||||
| 9 | 23002648 | Bolt M10x20 |
|
- | |||||
| 10 | 23004023 | Washer M10 |
|
- | |||||
| 11 | 23004146 | Washer 12 |
|
- | |||||
| 12 | W10357141 | Nut M12 |
|
- | |||||
| 13 | 23004222 | Bolt M8 X 70 |
|
- | |||||
| 14 | 23001266 | Nut M8 |
|
- | |||||
| 15 | 23001310 | Nut M6 |
|
- | |||||
| 16 | W10714004 | Bearing Housing |
|
- | |||||
| 17 | 23003615 | Bearing (6309) |
|
- | |||||
| 18 | 23001232 | Bearing (6207) |
|
- | |||||
| 19 | W10714022 | Ring Seal 65x100x10 |
|
- | |||||
| 20 | W10714025 | Ring Seal 65x100/114x9/12 |
|
- | |||||
| 21 | W10747775 | Plate, Speed Sensor |
|
- | |||||
| 22 | W10747779 | Bracket, Speed Sensor |
|
- | |||||
| 23 | W10747780 | Speed Sensor |
|
- | |||||
| 24 | WP696392 | Hose Clamp (90-110) (Replaces: 23001025) |
|
$ 7.31 | |||||
| 25 | 23004114 | Bolt M6x16 (Replaces: 23002461) |
|
- |
