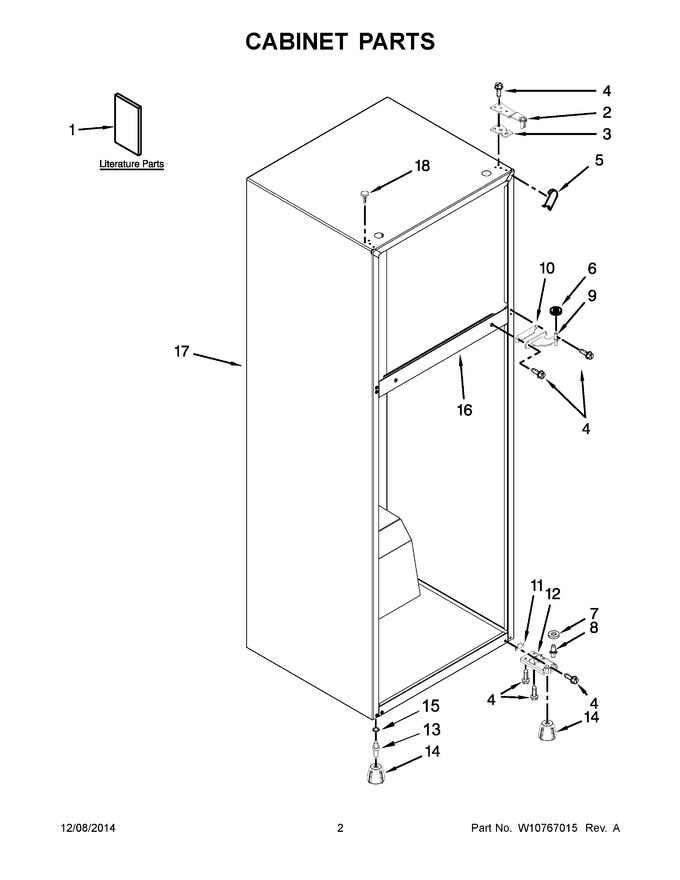

02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10738165 | Service And Wiring Sheet |
|
- | |||||
| 2 | W10346928 | Assembly, Top Hinge |
|
$ 37.19 | |||||
| 3 | W10399311 | Shim, Top Hinge |
|
$ 13.91 | |||||
| 4 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 5 | W10429302 | Filler, Corner (white) |
|
$ 10.04 | |||||
| 6 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 7 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 8 | WP2325483 | Pin, Hinge (bottom) (Replaces: 2325483) |
|
Immediately | $ 6.47 | ||||
| 9 | W10492014 | Hinge, Center |
|
$ 64.45 | |||||
| 10 | W11269182 | Shim, Center Hinge (Replaces: W10399330) |
|
$ 14.48 | |||||
| 11 | W10399313 | Shim, Bottom Hinge |
|
- | |||||
| 12 | W10837711 | Assembly, Bottom Hinge (Replaces: W10621245) |
|
$ 34.43 | |||||
| 13 | WPR-30039 | Screw, Leveler (Replaces: R-30039) |
|
Immediately | $ 6.96 | ||||
| 14 | WPW10340017 | Leg, Leveler (Replaces: W10340017) |
|
Immediately | $ 14.69 | ||||
| 15 | WPR-30268 | Washer, Metallic (Replaces: R-30268) |
|
$ 9.90 | |||||
| 16 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 17 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 18 | WPW10520304 | Plug, Hole (white) (Replaces: W10520304) |
|
Immediately | $ 16.47 | ||||
| 18A | WPW10520305 | Plug, Hole (black) (Replaces: W10520305) |
|
$ 16.44 | |||||
| 18B | WPW10520307 | Plug, Hole (grey) (Replaces: W10520307) |
|
Immediately | $ 6.47 | ||||
| 1A | W10732527 | Use And Care Guide |
|
- | |||||
| 1B | W10735172 | Energy Guide |
|
- | |||||
| 5A | W10447119 | Filler, Corner (black) |
|
$ 12.30 | |||||
| 5B | W10439615 | Filler, Corner (grey) |
|
- |
