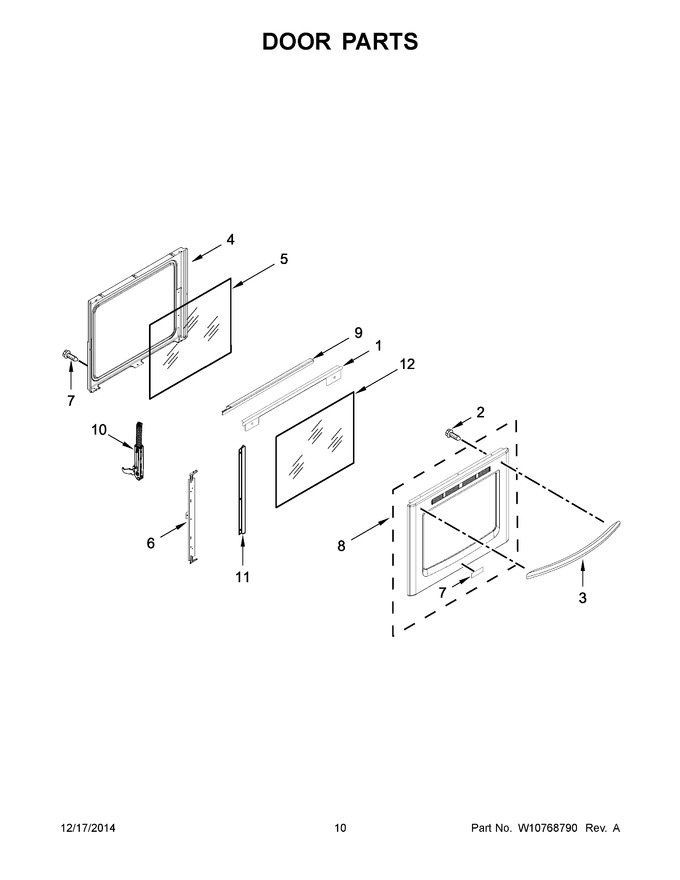

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10339814 | Trim, Vent (black) |
|
$ 139.33 | |||||
| 2 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 6.98 | ||||
| 3 | WPW10289076 | Handle, Door (stainless) (Replaces: W10289076) |
|
$ 286.81 | |||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 284.15 | ||||
| 5 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 227.18 | |||||
| 6 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 114.64 | |||||
| 7 | WPW10243391 | Badge (grey) (Replaces: W10243391) |
|
$ 49.98 | |||||
| 8 | WPW10490829 | Panel, Door (stainless) (Replaces: W10490829) |
|
$ 323.11 | |||||
| 9 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 203.18 | ||||
| 10 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 57.42 | ||||
| 11 | W10294852 | Bracket, Glass |
|
$ 144.19 | |||||
| 12 | WPW10495964 | Glass, Outer (Replaces: W10495964) |
|
$ 319.58 |
