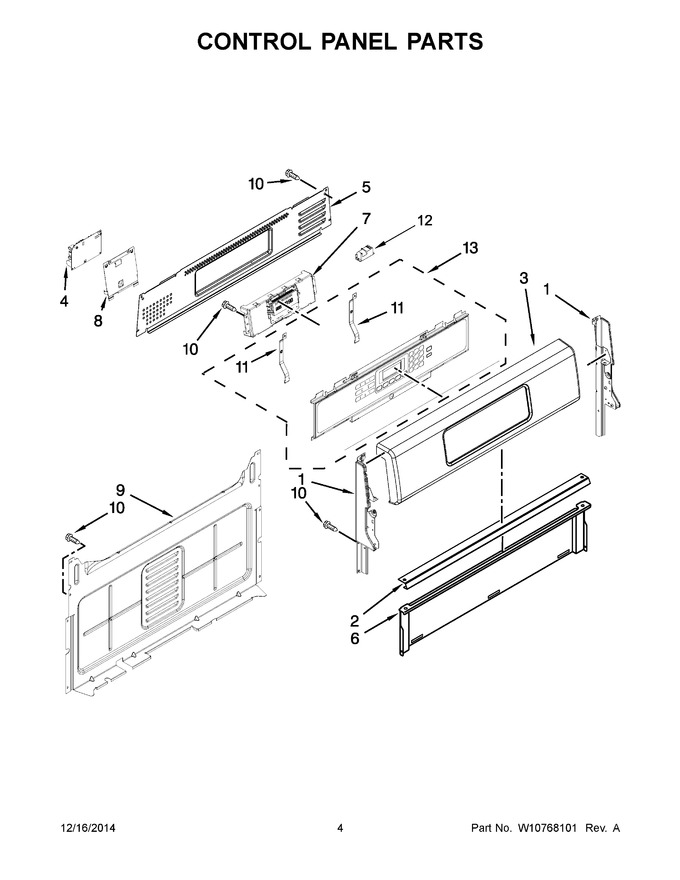

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 36.39
2	W10516123		Bracket, Console Mounting		Appelez-nous	-
3	W10347958		Console (white)				$ 120.54
4	WPW10511278		Module, Spark Dsi   (Replaces: W10511278)			Immediately	$ 215.63
5	W10198745		Cover, Upper				$ 110.48
6	W10192841		Shield, Heat				$ 91.45
7	WPW10340700		Control, Mrc   (Replaces: W10340700)				$ 389.34
8	W10516577		Bracket, Mounting		Appelez-nous	-
9	W10184251		Cover, Back		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
11	W10318546		Bracket, Control		Appelez-nous	-
12	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 161.15
13	W10324433		Assembly, Overlay				$ 301.00
1A	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)				$ 131.85
1B	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 52.14
1C	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)				$ 36.40
3A	W10347959		Console (black)		Appelez-nous	-
3B	W10614437		Console (stainless)				$ 137.38
