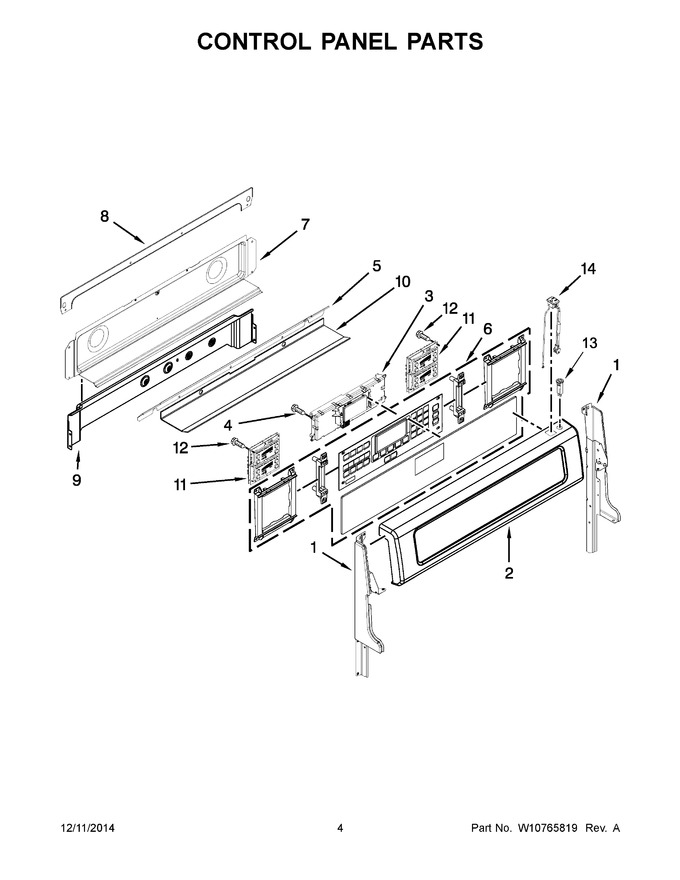

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black (left))				$ 92.84
2	W10424188		Console (stainless)				$ 211.89
3	W10365396		Electric, Control Mrc2				$ 401.35
4	WP74003976		Screw   (Replaces: 7101P500-60)			Immediately	$ 7.55
5	WPW10299338		Shield, Wire Cover   (Replaces: W10299338)				$ 96.60
6	W10295110		Assembly, User Interface (black)				$ 237.64
7	W10296773		Cover, Backguard				$ 194.52
8	WPW10292689		Cover, Wire Filler   (Replaces: W10292689)				$ 95.35
9	W10278697		Shield, Vent			Immediately	$ 183.33
10	W10334229		Shield, Backguard		Appelez-nous	-
11	WPW10277011		Interface, User (left)   (Replaces: W10277011)				$ 337.86
12	WP3400702		Screw   (Replaces: 3400702)				$ 13.09
13	W10861164		Receptacle (black)   (Replaces: W10488078)			Immediately	$ 21.45
14	WP9757602		Breaker, Circuit (black)   (Replaces: 9757602)			Immediately	$ 63.95
11A	W10287257		Interface, User (right)				$ 341.59
1A	W10319111		Support, Backguard (black (right))				$ 43.80
