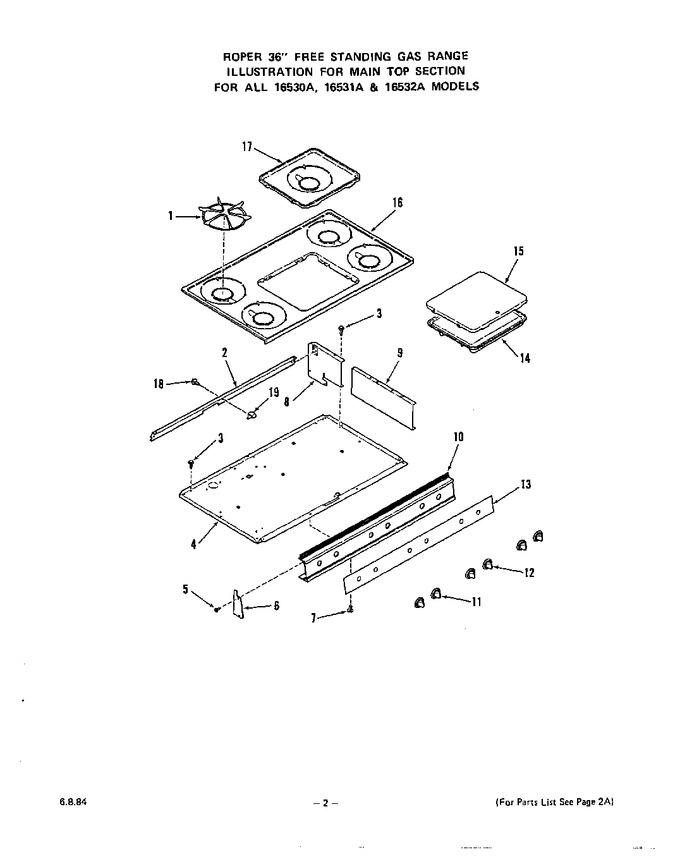

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316786 | Top Grate (5 Req) |
|
- | |||||
| 2 | 327906 | Support-rear Main Top (all 16531a & 2a Models) |
|
- | |||||
| 2 | 280251 | Support-rear Main Top (all 16530a Models) (Replaces: 280134) |
|
Immediately | $ 367.35 | ||||
| 3 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 4 | 325157 | Burner Box Bottom |
|
- | |||||
| 5 | 295268 | Screw 6-32x3/8`` |
|
- | |||||
| 6 | 325116 | End Cap-manifold Panel (right) |
|
- | |||||
| 6 | 325117 | End Cap-manifold Panel (left) |
|
- | |||||
| 7 | 239113 | Screw 10-32x3/8`` |
|
- | |||||
| 8 | 325121 | Extension-burner Box Bottom (right) |
|
- | |||||
| 8 | 325119 | Extension-burner Box Bottom (left) |
|
- | |||||
| 9 | 325359 | Baffle-burner Box Bottom (right) |
|
- | |||||
| 9 | 325681 | Baffle-burner Box Bottom (left) |
|
- | |||||
| 10 | 325122 | Manifold Panel |
|
- | |||||
| 11 | 325540 | Knob-gas Valve (5 Req) |
|
- | |||||
| 12 | 325541 | Knob-oven Thermostat |
|
- | |||||
| 13 | 326128 | Trim-manifold Panel |
|
- | |||||
| 14 | 321745 | Griddle Plate |
|
- | |||||
| 15 | 322221 | Griddle Cover (coffee 1653c0a) |
|
- | |||||
| 15 | 322222 | Griddle Cover (avocado 1653a0a) |
|
- | |||||
| 15 | 327869 | Griddle Cover (avocado 1653a1a & 2a) |
|
- | |||||
| 15 | 322223 | Griddle Cover (golden Wheat 1653h0a) |
|
- | |||||
| 15 | 327870 | Griddle Cover (golden Wheat 1653h1a & 2a) |
|
- | |||||
| 15 | 322224 | Griddle Cover (almond 1653l0a) |
|
- | |||||
| 15 | 327871 | Griddle Cover (almond 1653l1a & 2a) |
|
- | |||||
| 15 | 322220 | Griddle Cover (white 1653w0a) |
|
- | |||||
| 15 | 327867 | Griddle Cover (white 1653w1a & 2a) |
|
- | |||||
| 15 | 327868 | Griddle Cover (coffee 1653c1a & 2a) |
|
- | |||||
| 16 | 324890 | Main Top (avocado) |
|
- | |||||
| 16 | 324891 | Main Top (golden Wheat) |
|
- | |||||
| 16 | 324892 | Main Top (almond) |
|
- | |||||
| 16 | 324888 | Main Top (white) |
|
- | |||||
| 16 | 324889 | Main Top (coffee) |
|
- | |||||
| 17 | 325413 | Aeration Pan-griddle (white) |
|
- | |||||
| 17 | 325414 | Aeration Pan-griddle (coffee) |
|
- | |||||
| 17 | 325415 | Aeration Pan-griddle (avocado) |
|
- | |||||
| 17 | 325416 | Aeration Pan-griddle (golden Wheat) |
|
- | |||||
| 17 | 325417 | Aeration Pan-griddle (almond) |
|
- | |||||
| 18 | 327320 | Screw 10-16x7/16`` All 16531a & 2a Models |
|
- | |||||
| 19 | 327872 | Bracket-main Top Support All 16531a & 2a Models |
|
- |
