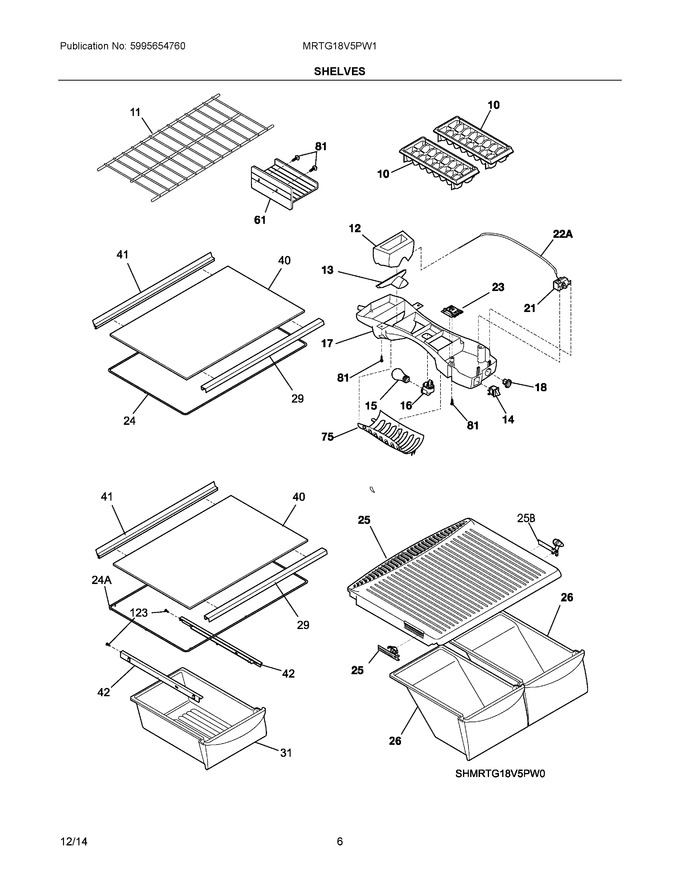

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 215667501 | Tray, Ice Cube, Plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 240358007 | Shelf, Freezer |
|
Immediately | $ 87.17 | ||||
| 12 | 240545001 | Diffuser, Air, Top |
|
$ 44.61 | |||||
| 13 | 240362601 | Diffuser, Air, Bottom |
|
Immediately | $ 41.81 | ||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| 15 | 218814402 | Light Bulb |
|
$ 55.36 | |||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 240433702) |
|
$ 72.68 | |||||
| 17 | 240368002 | Control Box (Replaces: 240368003) |
|
$ 134.23 | |||||
| 18 | 240360801 | Knob, Temp Control |
|
$ 43.95 | |||||
| 21 | 5304458064 | Control-temperature |
|
- | |||||
| 23 | 242011004 | Control-defrost, Adaptive Timer, 220/240 V, Pc Board |
|
- | |||||
| 24 | 240372404 | Frame, Sliding Shelf, Full Width (Replaces: 240372401) |
|
Immediately | $ 103.14 | ||||
| 25 | 242120508 | Cover-crisper Pan |
|
$ 171.99 | |||||
| 26 | 240364503 | Pan, Crisper, (2) |
|
Immediately | $ 146.53 | ||||
| 29 | 240357703 | Trim, Shelf, Front |
|
Immediately | $ 63.79 | ||||
| 31 | 240530811 | Pan-meat, W/o Graphics, Clear |
|
Immediately | $ 135.77 | ||||
| 40 | 240350619 | Panel, Glass Shelf, Full Width |
|
$ 157.27 | |||||
| 41 | 240561501 | Trim-shelf, 22.16", Rear |
|
Immediately | $ 44.65 | ||||
| 42 | 240530601 | Track, Meat Pan Hanger, Lh |
|
Immediately | $ 65.98 | ||||
| 61 | 215781501 | Shelf, Ice Tray Mount, Wire |
|
$ 136.19 | |||||
| 75 | 240515601 | Shield-light |
|
$ 53.73 | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 123 | 215005101 | Screw, Hanger/rlr Mtg, 8-10 X 7/16 |
|
$ 14.89 | |||||
| 22A | 240468202 | Tube, Sensor Sleeve, 31 Inch, Plastic, White (Replaces: 240468201) |
|
$ 9.10 | |||||
| 24A | 240372404 | Frame, Sliding Shelf, Full Width, W/hanger Tabs |
|
Immediately | $ 103.14 | ||||
| 25B | 241613501 | Control-humidity, Rh |
|
Immediately | $ 12.05 | ||||
| 25C | 241613502 | Control-humidity, Lh |
|
$ 47.78 | |||||
| 42A | 240530701 | Track, Meat Pan Hanger, Rh |
|
Immediately | $ 65.98 | ||||
| NIA | 241705801 | Spacer-shelf |
|
$ 7.09 | |||||
| NIA | 242081702 | Wiring Harness, Control Box |
|
- | |||||
| NIA | 5304455649 | Screw, Pan Hd, 6-20 X 0.438 |
|
$ 17.01 | |||||
| NIB | 5303299664 | Spacer, Shelf |
|
$ 24.10 |
