SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

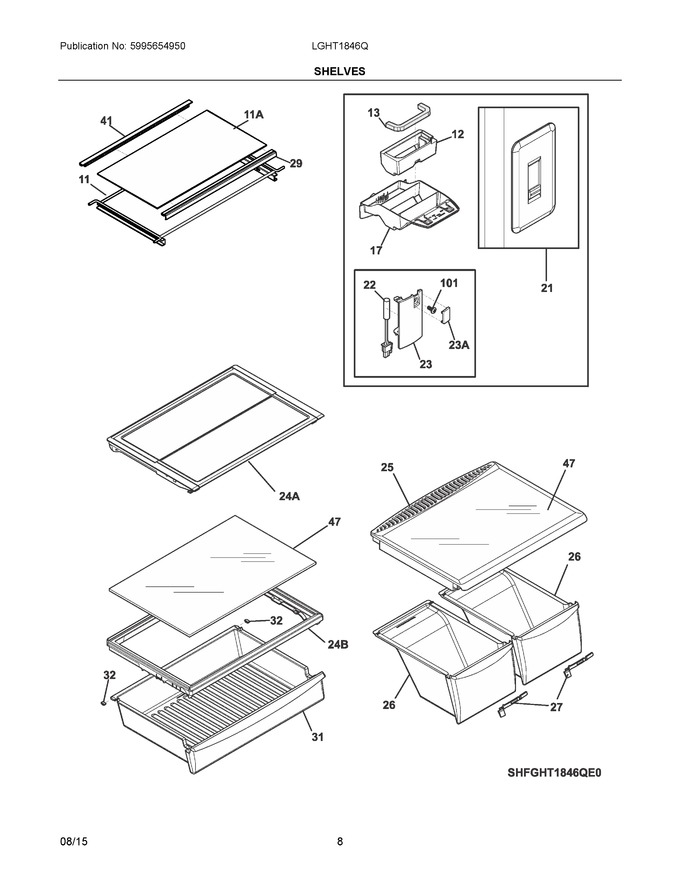

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	242087802		Frame-shelf, Full Width				$ 137.92
12	242248501		Diffuser, Air, Light Box		Appelez-nous	-
13	240568608		Gasket, Air Diffuser		Appelez-nous	-
17	5304498968		Housing, Air & Water				$ 65.63
21	242249002		Control Assembly, Temperature, W/user Interfce			Immediately	$ 211.91
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
23	241842301		Cap-thermistor			Immediately	$ 34.02
25	242201802		Cover-crisper Pan			Immediately	$ 123.10
26	242218505		Pan, Crisper, (2), W/humid Cntl   (Replaces: 242218503)				$ 147.13
27	242215901		Slide, Humidity Contrl				$ 18.95
29	242110901		Trim-shelf, Front		Appelez-nous	-
31	242322201		Meat Pan, Fw Pantry, W/slide Clips				$ 266.47
32	240349801		Clip-slide, Pan				$ 20.48
41	242111001		Trim-shelf, Rear				$ 19.24
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 45.50
101	241953902		Screw, #8 - 18 X .380			Immediately	$ 17.11
11A	242087902		Glass-shelf, Full Shelf				$ 122.43
23A	241969001		Cap, Screw				$ 16.69
24A	808469701		Shelf Assembly, Slide Under, Glass, W/flip Up Back				$ 217.59
24B	242218602		Cover, Deli Pan, Full Width, W/slide   (Replaces: 242218601)			Immediately	$ 121.78
NIA	5303299664		Spacer, Shelf				$ 24.10

    View Diagram in Separate Window       Print Part List
