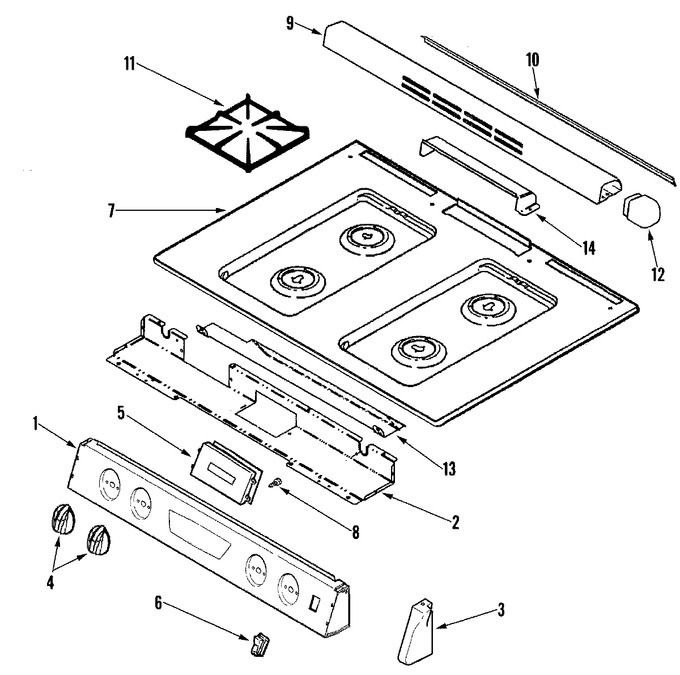

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74011246 | Panel, Control (wht) | 10 |
|
- | ||||
| 3 | 74004822 | Cap, End (wht-lt) | 10 |
|
- | ||||
| 3 | 74004821 | Cap, End (wht-rt) | 10 |
|
- | ||||
| 4 | 74010927 | Knob, Burner (wht) | 10 |
|
- | ||||
| 5 | 74010700 | Clock/overlay (wht) | 10 |
|
- | ||||
| 5 | 74010979 | Bracket, Clock Mtg | 10 |
|
- | ||||
| 6 | 74008717 | Switch, Rocker (wht) | 10 |
|
$ 72.68 | ||||
| 7 | 74010969 | Top Assembly (wht) | 10 |
|
- | ||||
| 8 | WP74004005 | Screw, 6-32 X 5/16`` (Replaces: 74004005) | 10 |
|
$ 6.95 | ||||
| 9 | 74010947 | Cover, Vent (alum Alloy) | 10 |
|
$ 132.85 | ||||
| 10 | 7201P061-60 | Gasket | 10 |
|
$ 4.83 | ||||
| 11 | 74008868 | Grate (gry) | 10 |
|
$ 75.40 | ||||
| 12 | 74004290 | End Cap, Vent (rt-gry) | 10 |
|
$ 27.70 | ||||
| 12 | 74004291 | End Cap, Vent (lt-gry) | 10 |
|
- | ||||
| 13 | 74010846 | Shield, Control | 10 |
|
- | ||||
| 14 | 3601F221-45 | Baffle, Vent Cover | 10 |
|
$ 28.30 |
