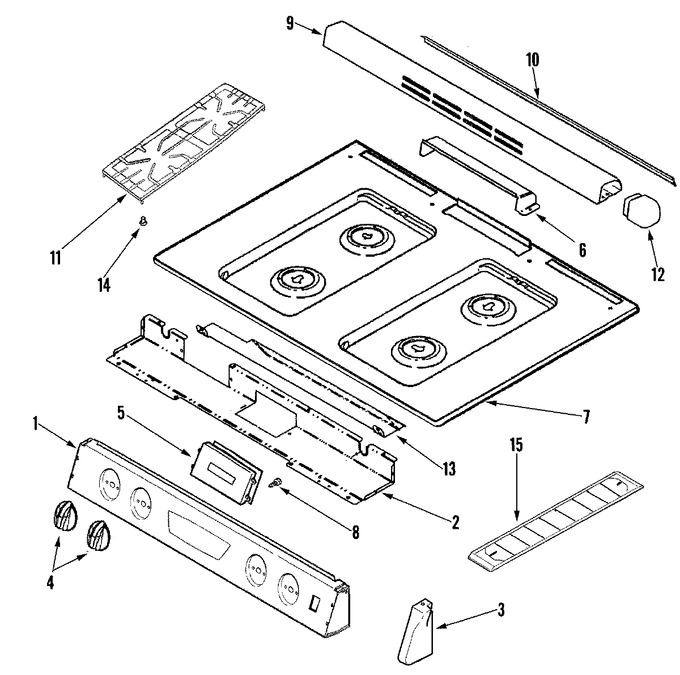

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010920 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | 74010826 | Support, Control Panel | 10 |
|
- | ||||
| 3 | 74010835 | Cap, End (blk-lt) | 10 |
|
- | ||||
| 3 | 74010834 | Cap, End (blk-rt) | 10 |
|
- | ||||
| 4 | 74010926 | Knob, Burner (blk) | 10 |
|
- | ||||
| 5 | 74010979 | Bracket, Clock Mtg | 10 |
|
- | ||||
| 5 | 74010956 | Clock/overlay (blk) | 10 |
|
- | ||||
| 6 | 3601F221-45 | Baffle, Vent Cover | 10 |
|
$ 28.30 | ||||
| 7 | 74010916 | Top, Main (blk) | 10 |
|
- | ||||
| 8 | WP74004005 | Screw, 6-32 X 5/16`` (Replaces: 74004005) | 10 |
|
$ 6.95 | ||||
| 9 | 74010946 | Cover, Vent (blk) | 10 |
|
- | ||||
| 10 | 7201P061-60 | Gasket | 10 |
|
$ 4.83 | ||||
| 11 | 74009044 | Grate, Double (blk) | 10 |
|
- | ||||
| 12 | 74004365 | End Cap, Vent (rt-blk) | 10 |
|
- | ||||
| 12 | 74010925 | End Cap, Vent (lt-blk) | 10 |
|
$ 11.53 | ||||
| 13 | 74010846 | Shield, Control | 10 |
|
- | ||||
| 14 | W10919249 | Bumper, Grate Bottom (Replaces: 74007356) | 10 |
|
Immediately | $ 11.30 | |||
| 14 | W10841140 | Sealer, Rtv Clear (Replaces: M0275597) | 10 |
|
Immediately | $ 24.92 | |||
| 15 | 74009037 | Grate, Trivet (blk) | 10 |
|
$ 78.97 |
