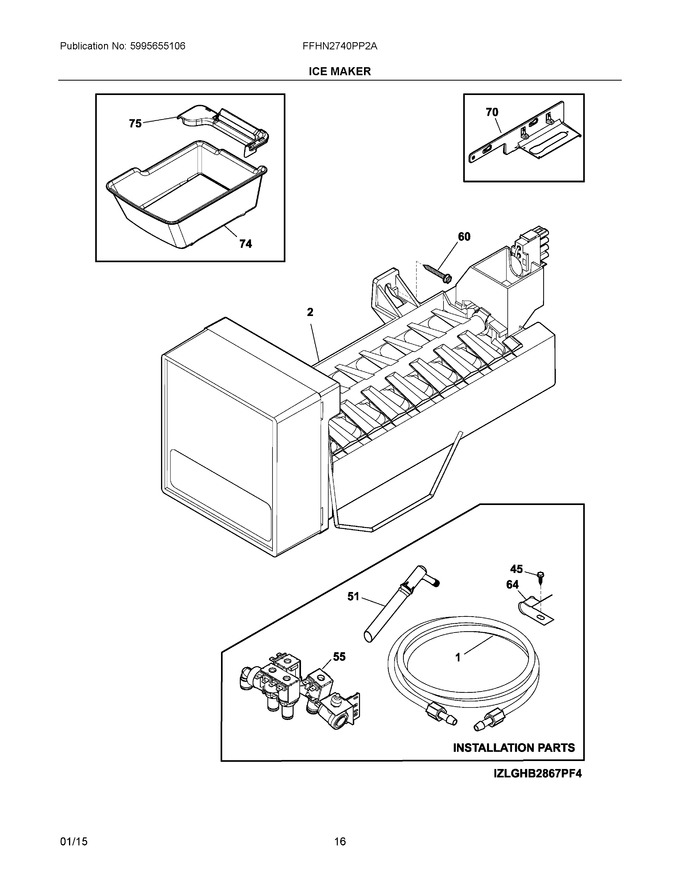

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976820 | Tube-water, 5/16 - 42", Green |
|
- | |||||
| 2 | 5303918493 | Ice Maker, Radius Cube, 115 V, Service (Replaces: 241798219) |
|
Immediately | $ 231.95 | ||||
| 45 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 51 | 242169406 | Tubing Assembly, Water, 1/4 - 44", Green |
|
- | |||||
| 55 | 242252702 | Valve, Solenoid, Triple |
|
Immediately | $ 132.71 | ||||
| 64 | 5304453921 | Clamp-cable |
|
- | |||||
| 70 | 242041701 | Bracket-ice Maker |
|
$ 70.88 | |||||
| 74 | 242127901 | Container-ice |
|
$ 197.17 | |||||
| 75 | 242240101 | Shield, Ice Bucket, Wide |
|
$ 76.92 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| NI | 242039701 | Screw, Basket Slides |
|
$ 13.46 | |||||
| NIA | 240555002 | Screw, Hex Washer Head, 8-32t X 0.375 (Replaces: 241690701) |
|
Immediately | $ 13.46 | ||||
| NIA | 242220204 | Tube-water, 5/16 - 68", Brown/tan (Replaces: 218976432) |
|
Immediately | $ 40.32 | ||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIB | 241518001 | Nut, 1/2-20, Nylon, Water Hose, (2) |
|
$ 23.86 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIC | 242220204 | Tube-water, 5/16 - 25", Natural (Replaces: 242082104) |
|
Immediately | $ 40.32 |
