Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 5304509435 Cover, Waveguide   (Replaces: 5304464061) In-Stock Immediately $ 13.74

3 5304514283 Support A, Shelf, Rear   (Replaces: 5304488341) Special Order $ 10.94

4 5304488342 Support B, Shelf, Front Special Order $ 18.79

5 5304499574 Base, Unit Chassis Special Order $ 238.85

6 5304499575 Control Assembly, Stainless; Before Serial No. Kg51301536 Appelez-nous -
10 5304538973 Door Assembly, Stainless, W/pcb; Before Serial No. Kg51301536   (Replaces: 5304499872) Special Order $ 379.64

19 5304488355 Magnetron, High Voltage Appelez-nous -
20 5304488356 Transformer, High Voltage Appelez-nous -
21 5304488357 Capacitor, High Voltage Appelez-nous -
22 5304488358 Diode, High Voltage Special Order $ 35.32

23 5304515179 Filter, Noise, Electronic   (Replaces: 5304499579) In-Stock Immediately $ 93.24

24 5304509451 Fuse   (Replaces: 5304488359) In-Stock Immediately $ 13.01

25 5304509445 Lamp Assembly, Led   (Replaces: 5304499540) In-Stock Immediately $ 51.55

27 5304512501 Power Cord, Electric   (Replaces: 5304464890) Special Order $ 106.27

28 5304509652 Sensor, Humidity   (Replaces: 5304481519) Special Order $ 305.46

29 5304488361 Thermistor Special Order $ 93.56

30 5304478919 Thermostat, 160/95 *h Special Order $ 26.23

31 5304509469 Thermostat   (Replaces: 5304464073) In-Stock Immediately $ 21.78

32 5304509474 Thermostat, Cutout, Transformer   (Replaces: 5304464093) In-Stock Immediately $ 20.97

33 5304509475 Thermostat, Cutout, Vent Motor   (Replaces: 5304464094) In-Stock Immediately $ 19.52

34 5304491512 Capacitor, Start Special Order $ 91.67

35 5304513464 Fan Assembly, Vent, With Motor   (Replaces: 5304488362) Special Order $ 557.67

36 5304499611 Shield, Heat, Base Plate Appelez-nous -
37 5304499877 Panel, Insulator, Upper Appelez-nous -
38 5304509457 Latch Hook   (Replaces: 5304499580) In-Stock Immediately $ 43.79

39 5304509458 Lever, Switch   (Replaces: 5304464097) In-Stock Immediately $ 10.17

40 5304509460 Switch, Interlock   (Replaces: 5304464099) In-Stock Immediately $ 45.27

41 5304509459 Switch, Monitor   (Replaces: 5304464098) In-Stock Immediately $ 30.84

42 5304499581 Wiring Harness, Main Appelez-nous -
43 5304488371 Duct, Air Guide, Left Appelez-nous -
44 5304488372 Duct, Air Guide, Right Appelez-nous -
45 5304481505 Frame, Lens Holder Special Order $ 70.13

46 5304464103 Lens, Cooktop Lamp, Glass Special Order $ 39.53

47 5304499582 Cover, Lamp Appelez-nous -
49 5304513468 Filter, Grease, Washable   (Replaces: 5304499583) Special Order $ 159.68

50 5304491760 Mounting Kit, With Templates   (Replaces: 5304488485) Special Order $ 121.46

51 OTRFILTER Filter, Air, Charcoal   (Replaces: 5304488379) In-Stock Immediately $ 32.45

52 5304488380 Motor, Convection Fan In-Stock Immediately $ 270.27

53 5304488381 Bracket, Motor Mount Appelez-nous -
54 5304488382 Connector, Motor/bracket Appelez-nous -
55 5304499599 Convection Fan Assembly Appelez-nous -
56 5304488384 Panel, Cabinet Back Appelez-nous -
57 5304502502 Belt, Convection Fan   (Replaces: 5304488385) Special Order $ 57.11

58 5304488386 Pulley, Fan Motor Special Order $ 31.19

59 5304499878 Panel, Insulator, Bottom Special Order $ 183.57

60 5304488388 Panel, Insulator, Right Side Appelez-nous -
61 5304509440 Motor, Turntable   (Replaces: 5304464113) Special Order $ 118.13

62 5304488389 Motor, Stirrer Fan Special Order $ 172.63

63 5304513472 Coupler, Turntable/motor   (Replaces: 5304499600) In-Stock Immediately $ 19.76

64 5304518907 Support, Turntable Ring, Brown   (Replaces: 5304488390) Special Order $ 79.71

65 5304513473 Turntable, Tray, Glass   (Replaces: 5304463319) Special Order $ 209.21

68 5304488393 Duct, Cooling Fan, Housing Special Order $ 73.74

69 5304509473 Fan Blade, Cooling Fan   (Replaces: 5304464257) Special Order $ 15.47

70 5304499602 Motor, Blower Fan Special Order $ 236.11

71 5304488463 Duct, Air Vent, Rear, Fan Mount Appelez-nous -
72 5304488464 Deflector, Air Vent, Magnetron Special Order $ 31.19

73 5304513480 Grille, Exhaust Vent, Black   (Replaces: 5304491516) Special Order $ 147.09

74 5304488415 Cover, Stirrer Fan Special Order $ 49.89

75 5304509650 Shaft, Stirrer Fan   (Replaces: 5304488416) Special Order $ 19.52

76 5304509649 Stirrer Fan   (Replaces: 5304488417) Special Order $ 15.90

77 5304488418 Cover, Vent Motor Special Order $ 81.50

78 5304509485 Frame, Damper Housing, Exhaust Adapter   (Replaces: 5304464120) In-Stock Immediately $ 25.32

79 5304509486 Damper, Door, Exhaust Adapter   (Replaces: 5304464119) In-Stock Immediately $ 27.73

80 5304488419 Retainer, Capacitor Strap Appelez-nous -
81 5304499603 Cabinet, Outer Casing Appelez-nous -
82 5304488421 Shield, Air Duct Appelez-nous -
83 5304488422 Cover, Lamp, Oven Cavity Appelez-nous -
84 5304488423 Lens, Lamp Glass, Oven Cavity Appelez-nous -
86 5304509487 Plate, Mounting, Rear   (Replaces: 5304488426) In-Stock Immediately $ 59.63

90 5304509436 Mounting Nut Kit   (Replaces: 5304464598) In-Stock Immediately $ 14.71

91 5304488424 Base, Transformer Appelez-nous -
92 5304488363 Wire, Connector, Pc Board; Before Serial No. Kg51301536 Special Order $ 155.21

10A 5304504071 Door Assembly, Stainless, W/pcb; Serial No. Kg51301536 And Later Special Order $ 982.27

6A 5304504069 Control Assembly, Stainless; Serial No. Kg51301536 And Later Special Order $ 696.84

92A 5304504073 Wire, Connector, Pc Board; Serial No. Kg51301536 And Later Special Order $ 130.98

NI 5304499876 Screw Kit, All In-Stock Immediately $ 35.57


    View Diagram in Separate Window     Print Icon   Print Part List

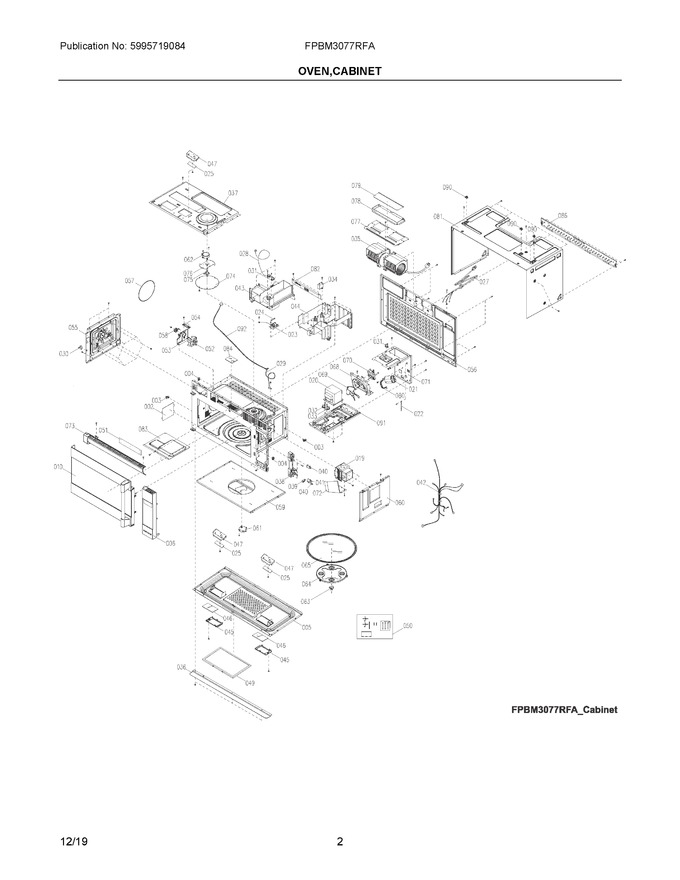

Diagram for FPBM3077RFA
