SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram

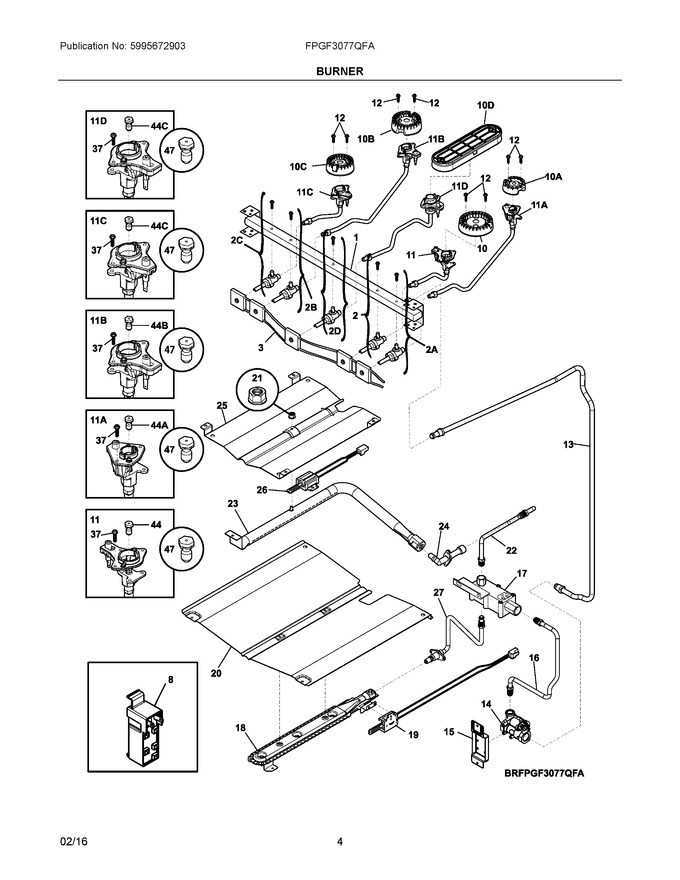

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316605501		Manifold, Pipe		Appelez-nous	-
2	5304487866		Valve, Top Burner, 16/17/18k, W/mtg Screw				$ 83.64
3	5304494418		Harness, Ignition, W/switches				$ 128.16
8	5304508269		Module, Spark   (Replaces: 316262404)			Immediately	$ 105.46
10	316438400		Burner, Sealed, 17k			Immediately	$ 83.42
11	316536625		Ignitor/orifice Assy., Top Burner, Right Front, 18k, W/tube & Holder				$ 185.27
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	316607701		Tube, Supply, Valve To Reg.		Appelez-nous	-
14	316091711		Regulator, Pressure   (Replaces: 5304498819)			Immediately	$ 90.03
15	316603300		Bracket, Regulator				$ 22.75
16	5304507349		Tube, Supply   (Replaces: 316603000)				$ 34.13
17	5303210798		Valve, Safety			Immediately	$ 587.56
18	5304494426		Burner, Oven   (Replaces: 807124101)				$ 94.98
19	316489403		Ignitor, Bake Burner			Immediately	$ 113.15
20	316602002		Baffle, Oven Burner   (Replaces: 316602001)				$ 65.98
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5304508596		Tube-valve, 3/8, Valve To, Broil Mixer   (Replaces: 316602900)				$ 56.70
23	316404302		Burner, Broiler				$ 104.18
24	5304516894		Elbow, Mixer   (Replaces: 316409700)				$ 87.21
25	5304497666		Baffle, Broiler				$ 94.04
26	5304506545		Ignitor, Broil Burner   (Replaces: 316489404)			Immediately	$ 94.21
27	316602400		Tube, Valve To Bake, W/mixer				$ 160.18
37	316240600		Screw, Assy Mtg, (8), Ignitor/orifice			Immediately	$ 12.13
44	316527510		Orifice, Top Burner, 18k		Appelez-nous	-
47	GRLP4		Lp Conversion Kit, W/instructions			Immediately	$ 56.70
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316438000		Burner, Sealed, 12k				$ 67.81
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10D	316559300		Burner, Sealed, 9.5k, Oval				$ 177.19
11A	316536610		Ignitor/orifice Assy., Top Burner, Right Rear, 5k, W/holder, Tube			Immediately	$ 92.38
11B	316536612		Ignitor/orifice Assy., Top Burner, Left Rear, 12k, W/holder, Tube				$ 116.52
11C	316536602		Ignitor/orifice Assy., Top Burner, Left Front, 9.5k, W/holder, Tube				$ 132.62
11D	316536623		Ignitor/orifice Assy., Top Burner, Center, 9.5k, W/holder & Tube				$ 147.71
2A	5303935308		Valve, 5k Top Burner, W/mtg Screw				$ 70.88
2B	5303935306		Valve, Top Burner, 12/14k, W/mtg Screw				$ 80.80
2C	5303935305		Valve, 9.5k Burner, W/mtg Screw			Immediately	$ 77.26
2D	5303935309		Valve, Top Burner, 9.5k/tortilla				$ 82.22
44A	316527504		Orifice, Burner, 5k				$ 22.68
44B	316527502		Orifice, Burner, 12k				$ 22.68
44C	316527500		Orifice, Burner, 9.5k				$ 21.40
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
NIA	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NIA	5304494425		Harness, Ignitor Module				$ 86.45
NIA	316401500		Cover, Broil Ignitor				$ 12.89
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
NIA	316498100		Shield, Wire, Safety Valve				$ 15.17
NIA	316602300		Bracket, Mixer, Bake				$ 12.05

    View Diagram in Separate Window       Print Part List
