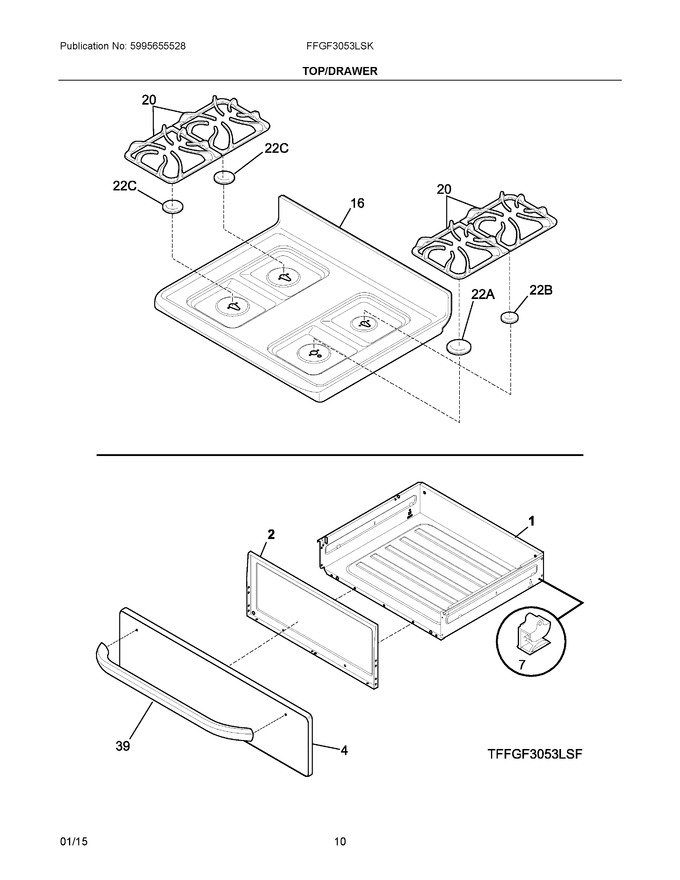

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer, Utility (Replaces: 316408703) |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527988 | Liner, Drawer (Replaces: 316403200) |
|
Immediately | $ 26.54 | ||||
| 4 | 316581601 | Drawer Panel, Assy, Stainless, W/ Overlay |
|
$ 158.24 | |||||
| 7 | 316407402 | Glide, Drawer, Rear (Replaces: 316407400) |
|
Immediately | $ 9.86 | ||||
| 16 | 316254505 | Maintop, Assembly, Black |
|
$ 197.03 | |||||
| 20 | 316202405 | Grate, Black |
|
$ 147.88 | |||||
| 39 | 316558201 | Handle, Door, Stainless |
|
$ 174.23 | |||||
| 22A | 5304508443 | Cap, 14k Burner, Matte, Black (Replaces: 316262004) |
|
Immediately | $ 46.01 | ||||
| 22B | 5304508441 | Cap, 5k Burner, Matte, Black (Replaces: 316261704) |
|
Immediately | $ 35.04 | ||||
| 22C | 5304508442 | Cap, 9.5k Burner, Matte, Black (Replaces: 316261804) |
|
Immediately | $ 36.55 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5303288572 | Screw-handle Mtg |
|
- | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
