01 - Cover Sheet
02 - Cook Top

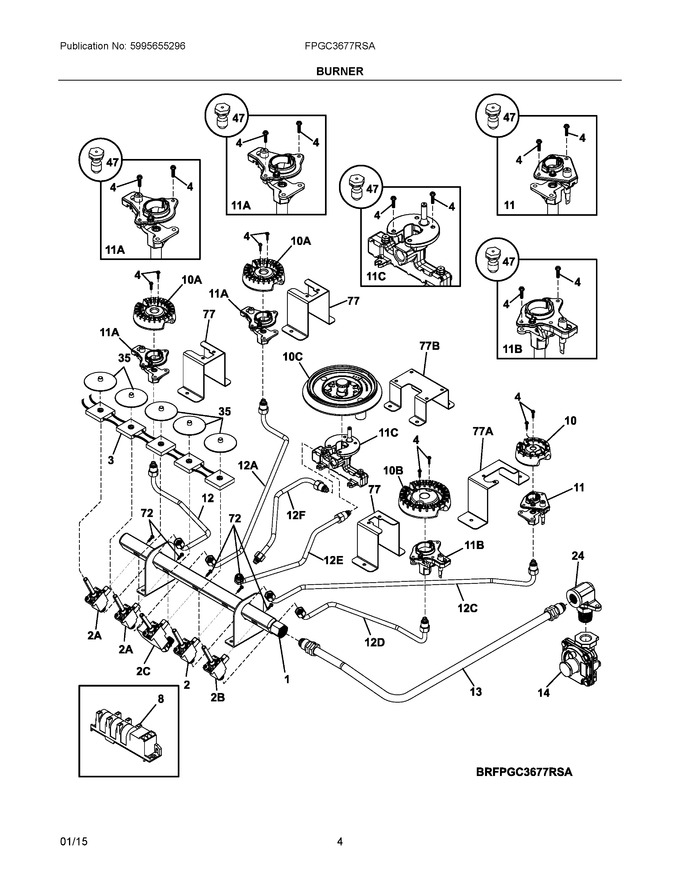

03 - Burner
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304498880 | Manifold, Pipe |
|
$ 125.50 | |||||
| 2 | 316536009 | Valve-top Burner, 5k |
|
$ 68.04 | |||||
| 3 | 305595107 | Switch Assembly, Ignitor, W/harness |
|
$ 97.07 | |||||
| 4 | 316240600 | Screw, Hex Wash, 6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 12.13 | ||||
| 8 | 808608804 | Module, Spark (Replaces: 318079001) |
|
Immediately | $ 76.06 | ||||
| 10 | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 56.70 | ||||
| 11 | 5304498786 | Ignitor/orifice Assy., Top Burner, 5k |
|
$ 82.93 | |||||
| 12 | 5304498881 | Tube, Burner, Lh Front |
|
- | |||||
| 13 | 5304498886 | Tubing, Connector, Manifold |
|
$ 61.05 | |||||
| 14 | 5304519943 | Regulator, Control (Replaces: 5304498794) |
|
$ 129.93 | |||||
| 24 | 318054010 | Elbow, Fitting |
|
$ 172.23 | |||||
| 35 | 807164301 | Bushing, Insulating |
|
- | |||||
| 47 | 5304537305 | Conversion Kit, Lp (Replaces: 318565429) |
|
Immediately | $ 101.37 | ||||
| 72 | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 77 | 5304498799 | Bracket, Ignitor/orifice, Mounting |
|
$ 18.43 | |||||
| 10A | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 52.45 | ||||
| 10B | 316438600 | Burner, Sealed, 14k |
|
Immediately | $ 79.80 | ||||
| 10C | 5304519952 | Burner, Sealed, 18k, G5 (Replaces: 139029400) |
|
Immediately | $ 94.80 | ||||
| 11A | 5304498787 | Ignitor/orifice Assy., Top Burner, 9.5k |
|
$ 119.83 | |||||
| 11B | 5304500255 | Ignitor/orifice Assy., Top Burner, 14k |
|
$ 66.63 | |||||
| 11C | 316440107 | Ignitor/orifice Assy., Top Burner, Twin, 18k, W/holder |
|
$ 198.04 | |||||
| 12A | 5304498882 | Tube, Burner, Lh Rear |
|
- | |||||
| 12C | 5304498884 | Tube, Burner, Rh Front |
|
- | |||||
| 12D | 5304498885 | Tube, Burner, Rh Rear |
|
- | |||||
| 12E | 5304500249 | Tube, Twin Burner, Center |
|
- | |||||
| 12F | 5304500248 | Tube, Twin Burner, Center |
|
- | |||||
| 2A | 316536000 | Valve-top Burner, 9.5k |
|
Immediately | $ 72.05 | ||||
| 2B | 316536002 | Valve, Top Burner, 14k |
|
$ 78.11 | |||||
| 2C | 316272312 | Valve, Dual Burner, Twin |
|
$ 226.33 | |||||
| 77A | 5304498800 | Bracket, Ignitor/orifice, 5k Burner, Mounting |
|
- | |||||
| 77B | 5304500254 | Bracket, Twin Burner |
|
- | |||||
| NI | 305338602 | Screw, (3) |
|
- | |||||
| NI | 305309701 | Screw, Phil, 4.2 X 6.5, (20) |
|
$ 5.67 | |||||
| NIA | 318199780 | Wiring Harness, Ignitor |
|
$ 100.56 | |||||
| NIB | 305338601 | Screw, (2) |
|
$ 4.26 | |||||
| NICA | 134178901 | Screw, 8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NICA | 316566901 | Sleeve, Insulator |
|
$ 12.89 |
