SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - Shelves


09 - System


11 - Ice Maker

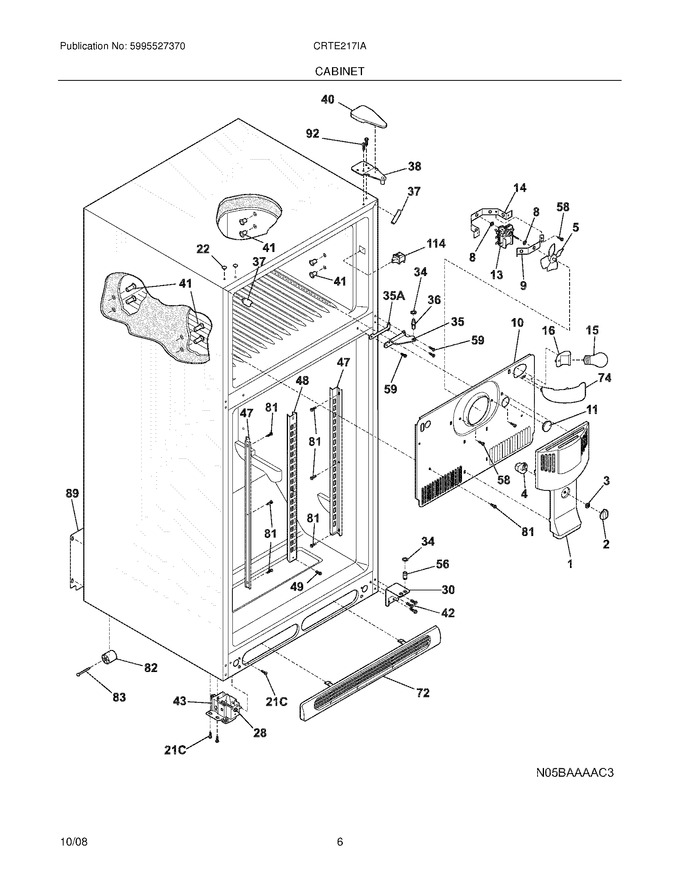

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358006		Shelf,freezer ,full-width ,wire				$ 45.41
12	240545901		Diffuser-air,top				$ 70.16
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
17	240368102		Control Box		Appelez-nous	-
18	240360801		Knob-temp Control				$ 43.95
24	240355228		Shelf-``spill-safe``,cantilever ,half Width,fixed				$ 149.89
25	240364718		Cover-crisper Pan				$ 164.62
26	240343803		Pan-crisper,(2)			Immediately	$ 171.91
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240530803)			Immediately	$ 135.77
34	240385201		Container,ice Bin				$ 97.83
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 56.70
42	240365401		Track,meat Pan Hanger ,lh			Immediately	$ 51.26
47	240350609		Panel,pan Cover ,glass   (Replaces: 240443301)			Immediately	$ 162.30
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 14.89
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
25B	241613501		Control-humidity,rh			Immediately	$ 12.05
25C	241613502		Control-humidity,lh				$ 47.78
F14	241554901		Switch-light/lamp				$ 70.88
F16	241559801		Socket-light				$ 72.68
F21	241537103		Control-temperature   (Replaces: 5304445058)			Immediately	$ 72.31
F23	215846602		Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 28.20
FNI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	5304455649		Screw,pan Hd ,6-20 X 0.438				$ 17.01
NI	241615461		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
