SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

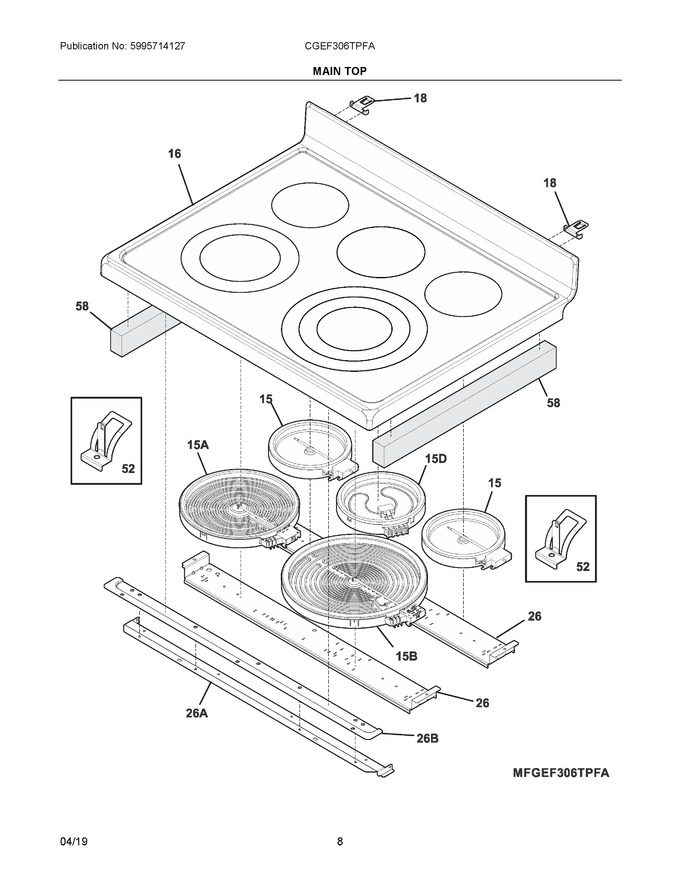

04 - Main Top


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	139033846		Smoothtop Assembly, Glass/steel, Black				$ 501.64
18	316436600		Hinge Bracket, Maintop, (2)				$ 45.36
26	5304500986		Channel, Element Support, (2)   (Replaces: 316427603)				$ 41.68
52	316461700		Clip, Element Mtg				$ 12.05
58	807157101		Insulation, 19" X "2, 1.25" Thick				$ 11.34
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
15B	318297810		Element, Surface, Triple, 800/1000/1200, 6"/8"/11			Immediately	$ 356.54
15D	140273621015		Element, Surface, Warmer, 100 W   (Replaces: 318198832)			Immediately	$ 35.77
26A	807295802		Bracket, Mounting, Black, Maintop		Appelez-nous	-
26B	316607600		Bracket, Chassis Support, Front				$ 52.33
NI	5304500104		Harness, Wiring, Surface		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.28
