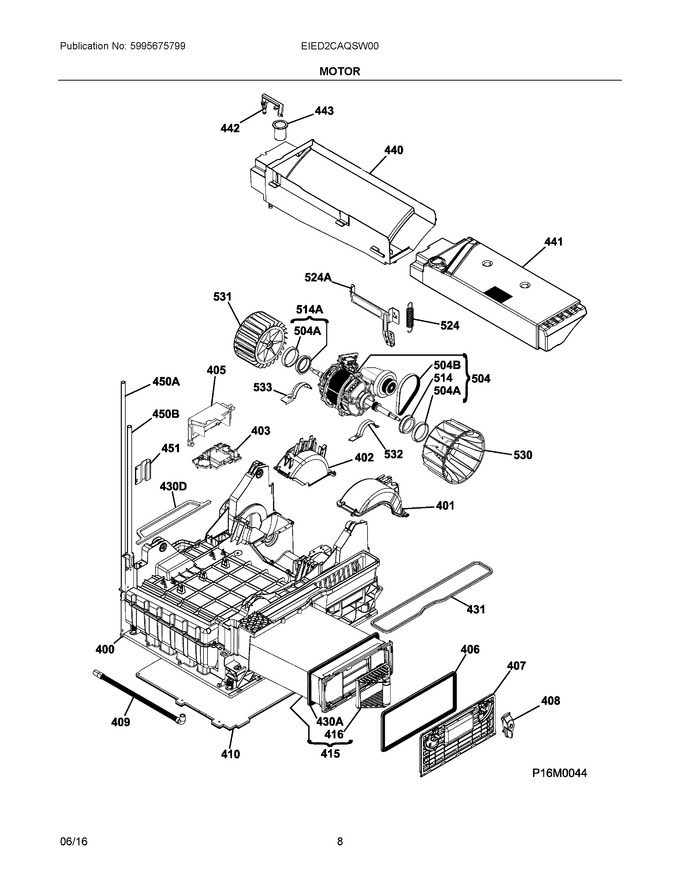

05 - Motor
06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 400 | 136600030 | Basement, Condenser P10 |
|
- | |||||
| 401 | 136604102 | Cover, Fan Wheel, Front |
|
$ 141.49 | |||||
| 402 | 136604205 | Cover, Fan Wheel, Back |
|
$ 111.13 | |||||
| 403 | 136604910 | Support, Pump |
|
$ 92.19 | |||||
| 405 | 136606504 | Cover, Pump, Float Switch |
|
$ 100.36 | |||||
| 406 | 136607300 | Gasket, Door, Basement |
|
$ 71.59 | |||||
| 407 | 136609110 | Door, Condenser, Basement |
|
$ 72.72 | |||||
| 408 | 136609214 | Knob, Door Lock, Basement |
|
$ 106.32 | |||||
| 409 | 136605700 | Pipe, Discharge, L=331.5mm |
|
$ 56.28 | |||||
| 410 | 809221801 | Cover, Basement |
|
- | |||||
| 415 | 136701301 | Condenser, Steam Asmy |
|
$ 238.43 | |||||
| 416 | 136607400 | Handle, Steam Condenser |
|
- | |||||
| 431 | 136605600 | Sealing, Air Duct, Basement |
|
$ 54.58 | |||||
| 440 | 136601700 | Support, Tank |
|
$ 153.26 | |||||
| 441 | 136601802 | Tank, Upper |
|
$ 144.87 | |||||
| 442 | 136602804 | Connector, Water Tank Ul (Replaces: 136602803) |
|
$ 17.01 | |||||
| 443 | 136606900 | Bushing, Tank |
|
$ 51.19 | |||||
| 451 | 136603500 | Tube, Holder |
|
- | |||||
| 504 | 808643202 | Motor, Reduction Gear, 190v, 240hz, 220w |
|
Immediately | $ 533.80 | ||||
| 514 | 405549614 | Bushing, Main Motor, White (Replaces: 125106100) |
|
$ 18.08 | |||||
| 524 | 125694900 | Tension Spring, Mtr, Env06 Crm |
|
$ 53.50 | |||||
| 530 | 136609300 | Wheel, Fan, Front, ?141mm (Replaces: 136609301) |
|
$ 60.15 | |||||
| 531 | 136604401 | Fan, Wheel, Cooling, Back |
|
Immediately | $ 233.89 | ||||
| 532 | A00551101 | Fixing Bracket, Main Motor Frnt |
|
$ 49.10 | |||||
| 533 | A00551201 | Fixing Bracket, Main Motor Frnt |
|
$ 49.89 | |||||
| 430A | 125106700 | Gasket, Heat Exchanger, Nex4 Cond, Front |
|
$ 85.13 | |||||
| 430D | 136606800 | Gasket, Heater, Basement |
|
$ 57.88 | |||||
| 450A | 136605411 | Hose, Overflow, 1040mm |
|
$ 116.24 | |||||
| 450B | 136605501 | Hose, Pump, Tanl, L=1130 |
|
- | |||||
| 504A | 125106000 | Rubber Damper, Main Mtr, ?49, 7 |
|
- | |||||
| 504B | 808699801 | Belt, Drive, L=267.5mm, Reduction Gear |
|
$ 139.63 | |||||
| 514A | 405549614 | Bushing, Kit, Nx4c (Replaces: 5027823800) |
|
$ 18.08 | |||||
| 524A | A00299401 | Support, Tension Spring |
|
$ 117.66 | |||||
| NI | A01523501 | Harness, Humidity Sensor |
|
$ 132.53 | |||||
| NI | 5022432900 | Nut |
|
- | |||||
| NI | 5068103300 | Washer, Ring, 0.5mm, ?8/?18mm |
|
- | |||||
| NI | A01522601 | Harness, Temp Probe |
|
- | |||||
| NI | A01522701 | Harness, Heat Element |
|
- | |||||
| NI | A01522802 | Harness, Motor, Main Elec |
|
$ 12.29 | |||||
| NI | A01522901 | Harness, Earth, 130+180+420mm |
|
$ 8.51 | |||||
| NI | A01523001 | Harness, Anti-interference |
|
- | |||||
| NI | A01523101 | Harness, Heat Element |
|
$ 32.87 | |||||
| NI | A01523201 | Harness, Drum Lighting |
|
- | |||||
| NI | A01523301 | Harness, Ui Board |
|
$ 139.63 | |||||
| NI | A01523401 | Harness, Ui Board |
|
$ 142.13 | |||||
| NI | 125122513 | Fittings, Drain, Condense, Kit, Dk11 |
|
$ 87.17 |
