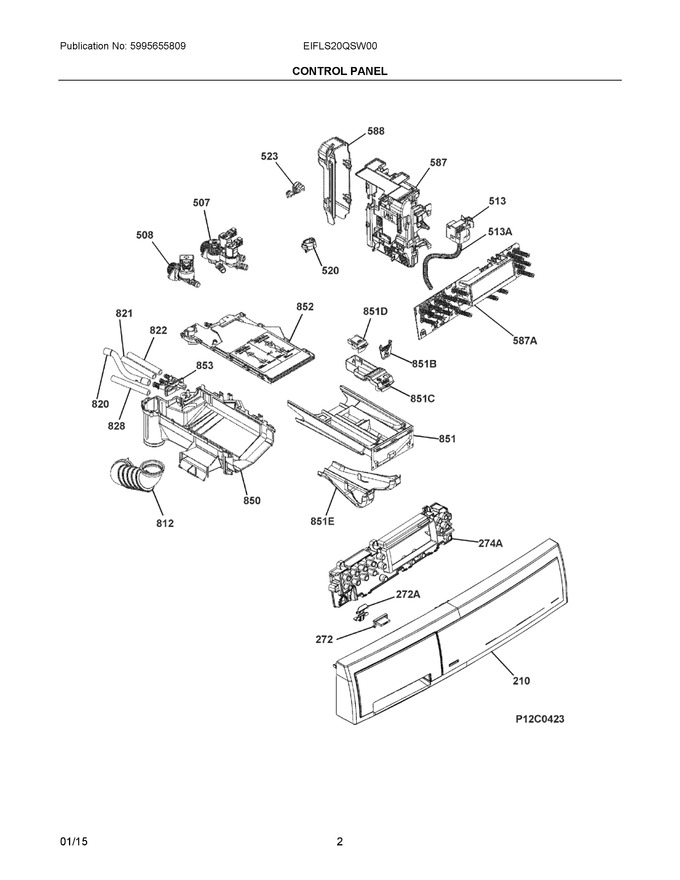

01 - Cover Sheet


02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
210	A01489203		Panel, Control Console, White				$ 282.92
272	136658511		Button, Rect On/off, Silver				$ 88.93
507	132518842		Valve, Electric 3 Ways			Immediately	$ 124.65
508	132744701		Valve, Electric, 1 Way			Immediately	$ 80.51
513	379221604		Switch, Pressure   (Replaces: A01414101)				$ 48.34
520	132766700		Support, Wiring Harness		Appelez-nous	-
523	A02006501		Duct, Power Cable, Ul		Appelez-nous	-
587	97391453500000		Control, Board, Electro, Ewx11831, Flwm				$ 466.09
588	807021101		Protection, Elec Board, Connection		Appelez-nous	-
812	132540400		Hose, Detergent Fill				$ 150.31
820	124734271		Hose, Water Valve, Dispenser		Appelez-nous	-
821	132608320		Tube, Electric Valve, Ev/wd G33 D=12		Appelez-nous	-
822	132118660		Tube, Electric Valve, ?10mm, L=152, Container Cup		Appelez-nous	-
828	132502480		Tube, Elec Valve, D=10 L=165, Container Cup		Appelez-nous	-
850	132640843		Dispenser, Detergent				$ 234.70
851	132507511		Drawer, Detergent				$ 253.87
852	132507112		Distributor, Water, Asmy Hot				$ 112.31
853	132502111		Distributor, Water, Back, Pipe Union				$ 177.08
272A	136658601		Spring, Button, On/off				$ 36.87
274A	136659600		Diffuser, Support, Luminous Diode				$ 101.12
513A	132642371		Tube, Pressure Switch   (Replaces: 132642330)				$ 43.67
587A	A10066602		Control, Ui Board Asmy, Tc1, Tir, Flwm   (Replaces: 136007544)				$ 501.80
851B	132767801		Flap, Partition, Detergent Drawr   (Replaces: 132767800)				$ 7.23
851C	809169901		Syphon, Additives, Det Drawer				$ 90.37
851D	809169801		Syphon, Liquid Det, Detergent Drwr				$ 66.51
851E	132507601		Conveyor, Bottom, Det Dwr				$ 128.68
NI	A01246501		Harness, Ui Main Board				$ 187.11
NI	A01246601		Harness, Motor, Inverter				$ 166.93
NI	105117480		Clamp, Hose		Appelez-nous	-
NI	132315900		Clamp, Hose, D 20, 5		Appelez-nous	-
NI	132315920		Clamp, Hose, D 52.5		Appelez-nous	-
NI	132315940		Clamp, Hose, D40		Appelez-nous	-
NI	132315970		Clamp, Hose, D65, 5		Appelez-nous	-
NI	5304526694		Hose, Sealing, Circulation   (Replaces: 132511300)			Immediately	$ 48.61
NI	516230907		Screw, Fixing, Lcd Cb, 3, 5x9, 5, Container		Appelez-nous	-
NI	519092015		Screw, 4, 8x16 Ph		Appelez-nous	-
NI	539151026		Clip, Harness			Immediately	$ 36.14
NI	5028610800		Clamp, Kit, Elec Valve		Appelez-nous	-
NI	A01208401		Cable, Power				$ 164.43
NI	A01245501		Harness (heat Element)				$ 217.58
NI	A01245601		Harness (elect Valve)		Appelez-nous	-
NI	A01245701		Harness (hot Water Inlet)		Appelez-nous	-
NI	A01245801		Harness (pressure Switch)		Appelez-nous	-
NI	A01245901		Harness (invert, 1340mm)				$ 167.27
NI	A01246101		Harness (drain Pump)				$ 199.87
NI	A01246201		Harness (inversion, 1180mm)				$ 172.94
NI	A01246301		Harness Door Safety, Interlock)		Appelez-nous	-
