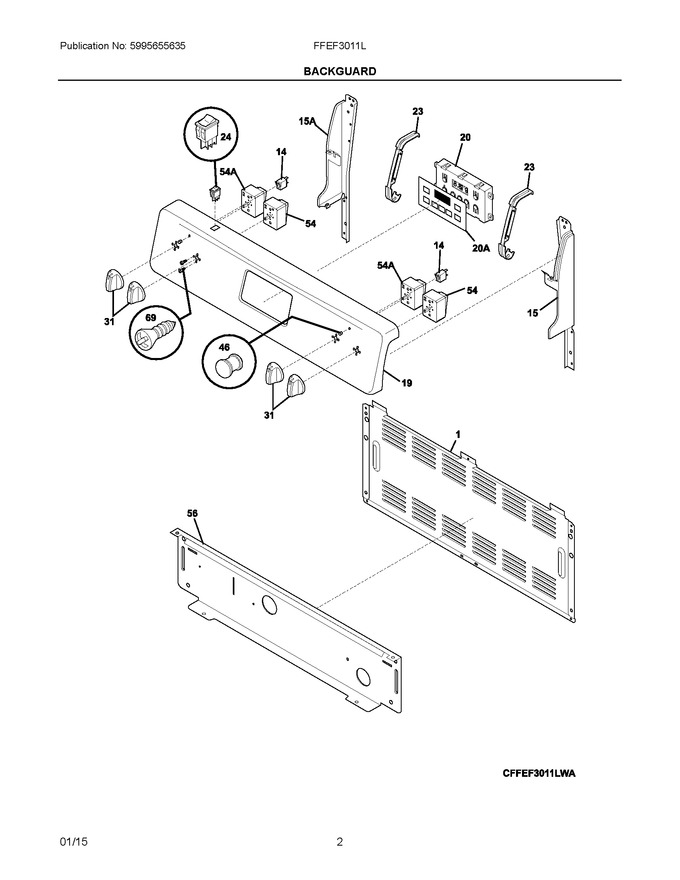

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
14	316022500		Light/lamp, Indicator (black) (125 V)			Immediately	$ 53.57
15	316411405		Support, Backguard (black) (rh)				$ 83.95
19	316541622		Panel, Backguard (black)				$ 121.90
20	5304518660		Clock/timer, Electronic, Es100   (Replaces: 316455400)			Immediately	$ 181.92
23	316441600		Bracket-clock Mtg (black)				$ 20.48
24	5304527841		Switch, Rocker (black) Oven Light   (Replaces: 316448700)			Immediately	$ 11.38
31	316543801		Knob, Control (black)			Immediately	$ 55.38
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
56	316234045		Shield, Backguard, Black, Inner   (Replaces: 316234013)				$ 66.74
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
15A	316411404		Support, Backguard (black) (lh)				$ 83.95
20A	316220729		Overlay, Clock (black)   (Replaces: 316220725)			Immediately	$ 26.93
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 51.68
NI	316021109		Screw, 8-18 X 0.5, (black)   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
