SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

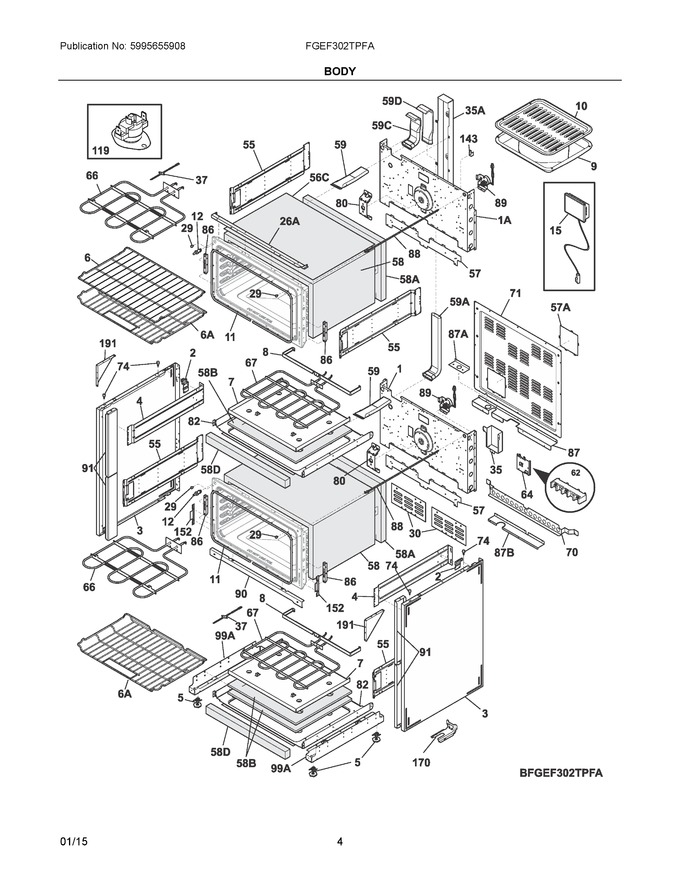

03 - Body


04 - Main Top


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139025400		Back, Main, Lower Oven		Appelez-nous	-
2	807251601		Clip, Mounting, Backguard, (2)		Appelez-nous	-
3	807226106		Panel, Bodyside, Black, (2)   (Replaces: 807226102)				$ 136.69
4	807251501		Bracket, Support, Backguard, (2)		Appelez-nous	-
5	318175510		Screw, Leveling, W/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
6	139012100		Rack, Flat		Appelez-nous	-
7	139024801		Box, Bake Element		Appelez-nous	-
8	807246501		Shield, Hidden Bake, Rear		Appelez-nous	-
9	318138801		Pan, Broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert, Broiler Panoptional Access0ry		Appelez-nous	-
11	139098502		Seal, Oven Door, Gray				$ 86.47
12	316445500		Switch, Oven Light, Door Frame			Immediately	$ 54.74
15	139001800		Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb				$ 124.22
29	316517600		Spacer, Oven Door				$ 12.05
30	5304496125		Shield, Lower Heat, (2)		Appelez-nous	-
35	318406500		Shield, Box		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
55	318643300		Bracket, Support, Side, (2)		Appelez-nous	-
57	139024900		Panel, Service		Appelez-nous	-
58	139210100		Insulation, Wrapper, Top & Sides		Appelez-nous	-
59	316208401		Vent Tube, Assembly, W/catalyst				$ 194.14
62	5303935061		Terminal Block Kit		Appelez-nous	-
64	318561801		Bracket, Terminal Block		Appelez-nous	-
66	5304521498		Element, Broil, 6 Pass, 3400w   (Replaces: 139008900)			Immediately	$ 87.21
67	139211601		Element, Bake, 2500w				$ 125.13
70	318565000		Bracket, Bottom, Rear		Appelez-nous	-
71	318405404		Panel, Rear, Lower		Appelez-nous	-
74	318141910		Bumper, Bodyside, (4)				$ 3.68
80	139021101		Bracket, Support, Chassis/fan   (Replaces: 139021100)				$ 14.89
82	139024700		Shield, Insulation, Lower		Appelez-nous	-
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	318405500		Bracket, Cable Mtg.		Appelez-nous	-
88	318250207		Rod, Latch, W/bushing				$ 62.95
89	318095967		Motor, Latch Assy, W/brkt & Switch				$ 238.62
90	318405203		Trim, Bottom, Black				$ 56.70
91	5304498570		Trim, Cavity, Stainless, Side, (4)		Appelez-nous	-
119	318004902		Switch, Thermal			Immediately	$ 71.44
143	318172904		Support, Wire		Appelez-nous	-
152	318338520		Bracket, Lateral Panel, (2)				$ 18.38
170	318584501		Anti Tip Kit, Assembly, W/template		Appelez-nous	-
191	318322801		Angle, Rear Plenum, (2)		Appelez-nous	-
1A	139025401		Back, Main, Upper Oven		Appelez-nous	-
26A	807295802		Bracket, Mounting, Black, Maintop		Appelez-nous	-
35A	139073800		Cover, Vent Tube		Appelez-nous	-
56C	318641700		Insulation, Upper		Appelez-nous	-
57A	318407100		Panel, Access		Appelez-nous	-
58A	139210200		Insualtion, Back		Appelez-nous	-
58B	139210300		Insulation, Hidden Bake, Bottom		Appelez-nous	-
58D	139095501		Insualtion, Hidden Bake, Front		Appelez-nous	-
59A	139212701		Vent Tube, Lower Oven, Lower		Appelez-nous	-
59C	139212503		Vent Tube, Upper Oven, Black		Appelez-nous	-
59D	139212601		Vent Tube, Lower Oven, Upper		Appelez-nous	-
6A	139012400		Rack, Oven, Offset, W/handle				$ 181.34
87A	318111806		Plate, Cord Set Mtg				$ 11.68
87B	807544201		Trim, Rear Shield		Appelez-nous	-
99A	318256210		Bracket, Side, Bottom, (2)		Appelez-nous	-
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	5304500101		Harness, Wiring, Main		Appelez-nous	-
NI	807705101		Harness, Wiring, Mdl/ads/probe		Appelez-nous	-
NI	316303501		Harness Assembly, Filter, Electrical, W/capacitors				$ 84.91
NI	318235301		Connector Assy., W/3 Lugs, & Instructions   (Replaces: 318235300)				$ 29.06
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NIA	318946400		Bulb, Halogen, G9, 40w, 120v			Immediately	$ 49.32
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316247300		Catalyst, Oven Vent, Ceramic				$ 99.23
NIA	316247900		Spacer, Power Board				$ 44.65
NIA	807504601		Harness, Wiring, Door Switch				$ 30.47
NIA	318167300		Clip, Rod				$ 2.84
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIB	5303311164		Spring				$ 18.95
NIC	316542600		Plate, Grounding Strap		Appelez-nous	-
NIC	5304436864		Washer, Flat				$ 2.84

    View Diagram in Separate Window       Print Part List
