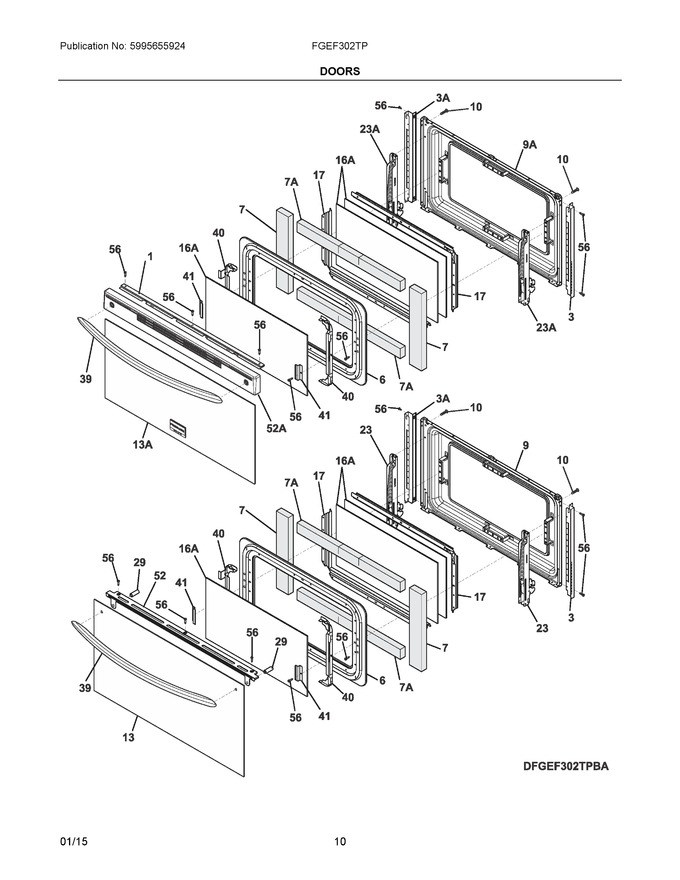

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318562705		Trim, Top, Black, Upper Door		Appelez-nous	-
3	807045603		Trim, Door Side, Black, Rh		Appelez-nous	-
6	807045901		Shield, Wool		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
9	807939102		Liner, Door				$ 196.14
10	5303288572		Screw-handle Mtg		Appelez-nous	-
13	807939216		Door Assembly, Outer, White, Lower Oven		Appelez-nous	-
17	807045801		Spacer, Door Glass, Inner, (2)		Appelez-nous	-
23	316575936		Hinge, Oven Door, Light Yellow, Lower		Appelez-nous	-
29	139023400		Spacer, Door Handle, (2)				$ 20.48
39	316544501		Handle, Door, White			Immediately	$ 131.57
40	318642900		Retainer, Glass, Oven, (4)		Appelez-nous	-
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
52	807437405		Trim, Door Top, Black, Lower Door				$ 87.89
56	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
13A	807939215		Door Assembly, Outer, White, Upper Oven, W/badge		Appelez-nous	-
16A	318212216		Glass, Oven Door, Heat Barrier, Hbii				$ 160.76
23A	316575935		Hinge, Oven Door, Light Yellow, Upper		Appelez-nous	-
3A	807045606		Trim, Door Side, Black, Lh		Appelez-nous	-
52A	808500201		Cap, Door Top, White				$ 82.53
7A	808949801		Insualtion, Oven Door, Top/bottom		Appelez-nous	-
9A	807939105		Liner, Door		Appelez-nous	-
NI	318165800		Spacer, Glass, Foam				$ 17.72
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
