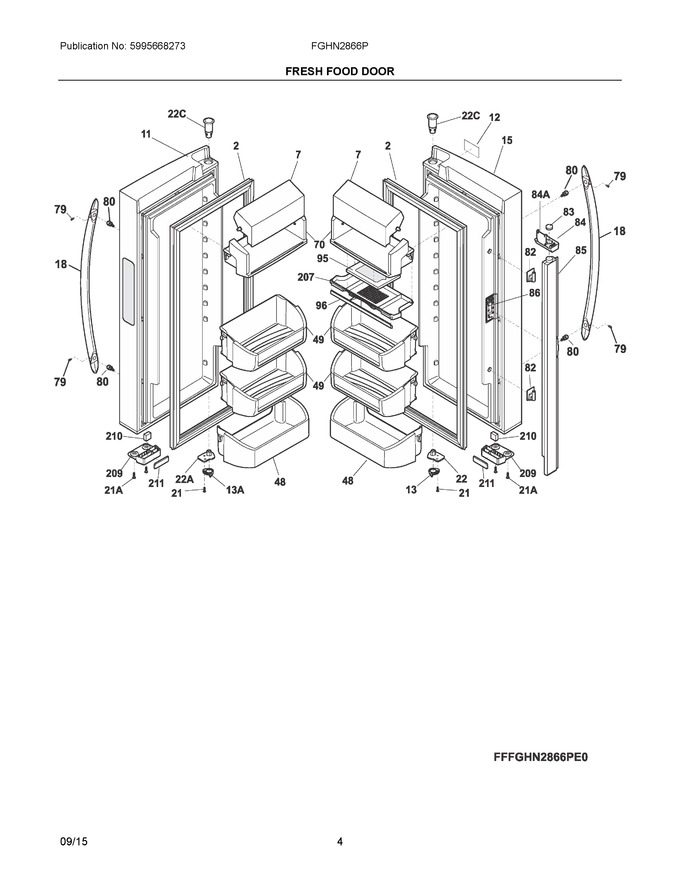

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-refr Door, Grey, Magnetic (Replaces: 241778303) |
|
Immediately | $ 89.88 | ||||
| 7 | 242011401 | Door-dairy, Removable |
|
- | |||||
| 11 | 241988060 | Door-refr, Black, Lh |
|
$ 300.18 | |||||
| 12 | 242015201 | Label-nameplate |
|
Immediately | $ 6.90 | ||||
| 13 | 241868401 | Door Stop, Refrig Rh, Plated |
|
$ 18.43 | |||||
| 15 | 241988051 | Door-refr, Black (smooth), Rh |
|
$ 405.72 | |||||
| 18 | 241930103 | Handle-door, Black |
|
$ 213.98 | |||||
| 21 | 242017501 | Screw, 10-32 X 0.750 |
|
$ 15.60 | |||||
| 22 | 242075601 | Cam, Upper Hinge, Rh |
|
$ 23.31 | |||||
| 48 | 242071401 | Bin-door, Pseudo, White |
|
Immediately | $ 91.99 | ||||
| 49 | 242037201 | Bin-door, Gallon |
|
Immediately | $ 111.80 | ||||
| 70 | 241804604 | Compartment-dairy, Removable |
|
- | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 21.99 | ||||
| 83 | 241812202 | Magnet, Door |
|
$ 72.30 | |||||
| 84 | 808274201 | Guide-mullion, Magnet Cover, Flipper |
|
Immediately | $ 36.41 | ||||
| 85 | 241778808 | Flipper Mullion Assembly, W/heater |
|
Immediately | $ 315.40 | ||||
| 86 | 241779802 | Hinge-mullion, Center, Flipper (Replaces: 241779801) |
|
Immediately | $ 36.73 | ||||
| 95 | EAFCBF | Filter, Air (Replaces: 242047801) |
|
Immediately | $ 27.64 | ||||
| 96 | 242048006 | Door-air Filter (Replaces: 242048002) |
|
$ 16.69 | |||||
| 207 | 242047901 | Housing-air Filter |
|
$ 80.39 | |||||
| 209 | 242291002 | Housing, Magnet, Black |
|
$ 19.13 | |||||
| 210 | 241779101 | Magnet, Door |
|
Immediately | $ 31.19 | ||||
| 211 | 241979602 | Bumper, Rubber, Black |
|
- | |||||
| 13A | 241868402 | Door Stop, Refrig Lh, Plated |
|
$ 18.43 | |||||
| 21A | 5304453707 | Screw, Quad Hilo, #8-18, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 22A | 242075602 | Cam, Upper Hinge, Lh |
|
$ 25.02 | |||||
| 22C | 241760401 | Bearing, Hinge, Top |
|
Immediately | $ 19.13 | ||||
| 84A | 5303918644 | Cover-mullion, Magnet Cover (Replaces: 242190501) |
|
$ 41.44 | |||||
| NI | 241601001 | Wrench, Allen |
|
- | |||||
| NI | 241953902 | Screw, #8 - 18 X .380 |
|
Immediately | $ 17.11 | ||||
| NI | 242068601 | Bumper, Flipper Mullion |
|
$ 14.41 | |||||
| NI | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NI | 242045402 | Harness-wiring, Door |
|
$ 62.37 | |||||
| NIA | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NIB | 5304520993 | Harness-wiring, Flipper Mullion (Replaces: 241788401) |
|
Immediately | $ 41.97 |
