New Model Search:

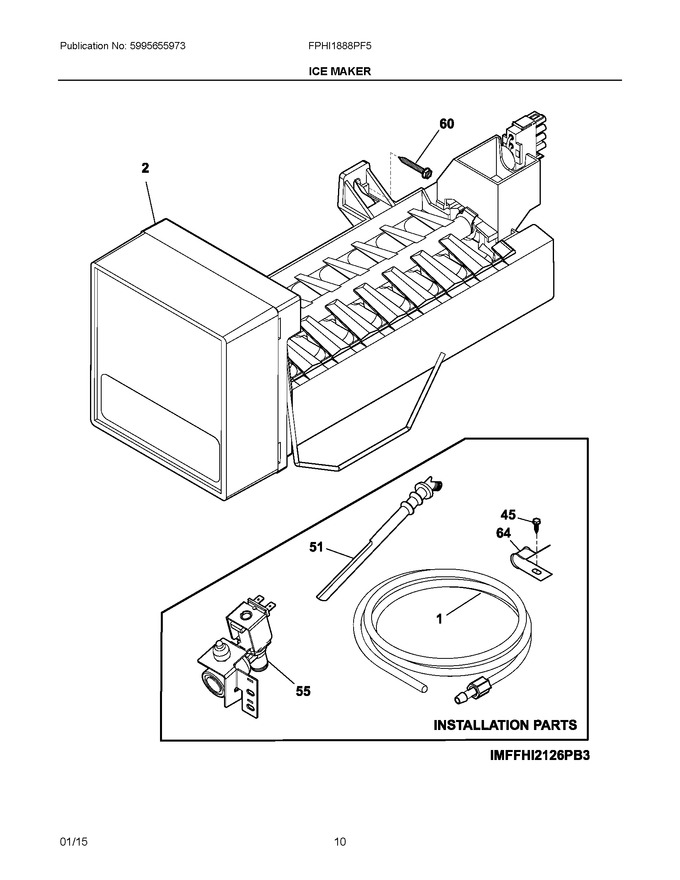

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976921 | Tube-water Inlet, Valve To I.m. |
|
- | |||||
| 2 | 241798231 | Ice Maker, Radius Cube, Service, 115 V, Complete (Replaces: 241798201) |
|
Immediately | $ 200.97 | ||||
| 42 | 218515401 | Clip-grille |
|
$ 17.72 | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 51 | 241796405 | Tube-water Fill, Extension |
|
$ 18.43 | |||||
| 55 | 242252603 | Valve-water, Solenoid Assy |
|
Immediately | $ 73.14 | ||||
| 60 | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 12.05 | |||||
| 64 | 5304455846 | Clamp, .31 Id, Steel, Water Tube |
|
$ 10.63 | |||||
| NIA | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NIB | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker |
|
Immediately | $ 20.56 |
