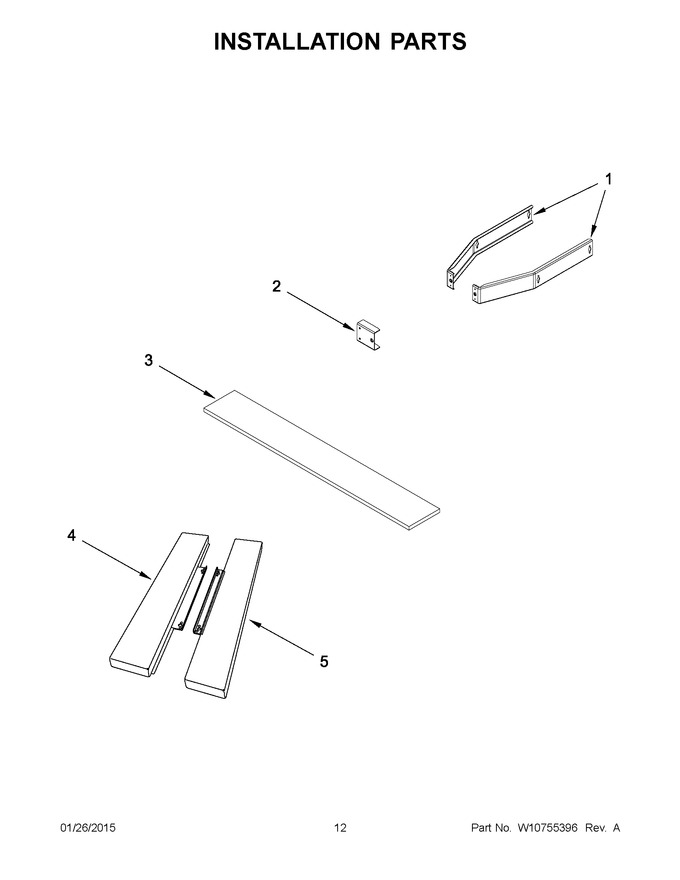

07 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10775910		Bracket, Mounting   (Replaces: 461967011821)				$ 94.66
2	W10731693		Tip, Mounting Bracket				$ 61.94
3	W10515721		Rail, Distance		Appelez-nous	-
4	W10731694		Assembly, Side Strip (left)				$ 204.49
5	W10721489		Assembly, Side Strip (right)				$ 223.28
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	8205750		Wiring Harness Parts, Harness, Lamp				$ 189.55
NI	W11356974		Wiring Harness Parts, Harness, Interlock Switch   (Replaces: 461968972782)				$ 143.85
NI	W10737669		Kit, Screw				$ 29.50
NI	8205751		Wiring Harnss Parts, Harness, Fan & Turntable Motor				$ 88.56
NI	W11356971		Wiring Harness Parts, Harness, Sensor   (Replaces: W10491630)				$ 97.24
NI	W10615910		Wiring Harness Parts, Harness, Wire Pcb To Inverter   (Replaces: 8205014)				$ 211.70
