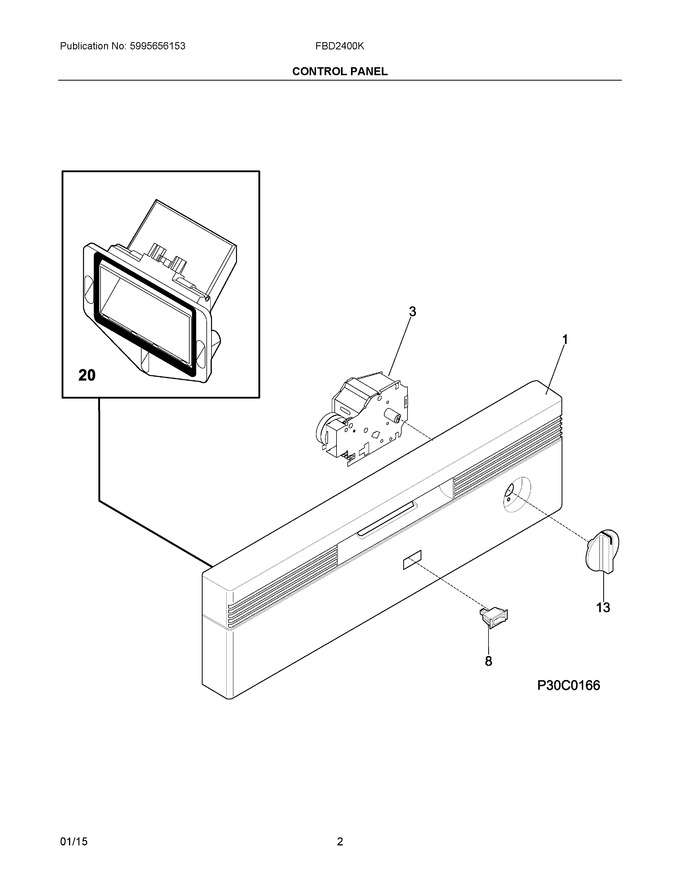

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154667445 | Panel, Control (black) (w/graphics) |
|
$ 124.73 | |||||
| 3 | 807387501 | Timer |
|
$ 316.64 | |||||
| 8 | 154240403 | Switch, Rocker/selector (black) |
|
$ 77.36 | |||||
| 13 | 154338303 | Knob, Timer (black) |
|
$ 53.50 | |||||
| 20 | 154433001 | Vent Assy, Static Dry |
|
$ 50.82 | |||||
| NI | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 | ||||
| NI | 808421301 | Harness, Wiring, Main |
|
- | |||||
| NI | 808612202 | Energy Guide |
|
- | |||||
| NIA | 154095701 | Screw, Thread Rolling, (2), Timer |
|
$ 10.34 | |||||
| NIA | 154793401 | Screw, Dry Duct, (3) |
|
$ 7.09 | |||||
| NIB | 154131204 | Shield, Timer |
|
- |
