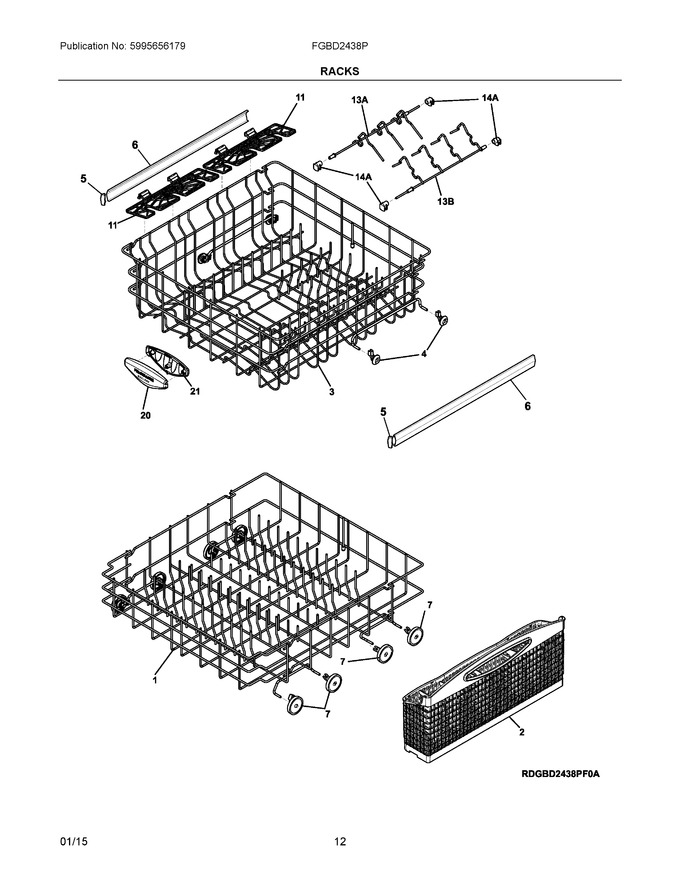

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304533200 | Rack Assembly, Lower, Nylon, Grey, W/wheels (Replaces: 154875203) |
|
$ 151.81 | |||||
| 2 | 5304535382 | Basket, Silverware, Grey (Replaces: 154556102) |
|
Immediately | $ 25.43 | ||||
| 3 | 140229954072 | Rack Assembly, Upper (Replaces: 5304498208) |
|
Immediately | $ 145.13 | ||||
| 4 | 154522902 | Wheel & Bushing Assy, Grey, Upper Rack, (8) |
|
$ 39.54 | |||||
| 5 | 5304506510 | Cap, Slide, Grey, (4) (Replaces: 5304440996) |
|
Immediately | $ 7.23 | ||||
| 6 | 154597801 | Slide, Rack, Upper, (2) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy, Grey, Lower Rack, (8) (Replaces: 154174503) |
|
Immediately | $ 12.75 | ||||
| 11 | 5304532945 | Shelf, Cup, Half Width, Gray (Replaces: 154793904) |
|
$ 7.42 | |||||
| 20 | 5304506509 | Handle, Pull, Front, Upper Rack (Replaces: 154732602) |
|
$ 13.74 | |||||
| 21 | 5304504913 | Handle, Pull, Grey, Rear, Upper Rack (Replaces: 154530902) |
|
$ 13.74 | |||||
| 13A | 154740304 | Fence, Multi, 3 Wire, Lh, Grey, Upper Rack |
|
Immediately | $ 32.61 | ||||
| 13B | 5304532950 | Fence, Multi, 4 Wire, Rh, Grey, Upper Rack (Replaces: 154740404) |
|
Immediately | $ 19.76 | ||||
| 14A | 5304506508 | Bracket, Multi Fence, Grey, Upper Rack, (4) (Replaces: 154242003) |
|
Immediately | $ 5.79 |
