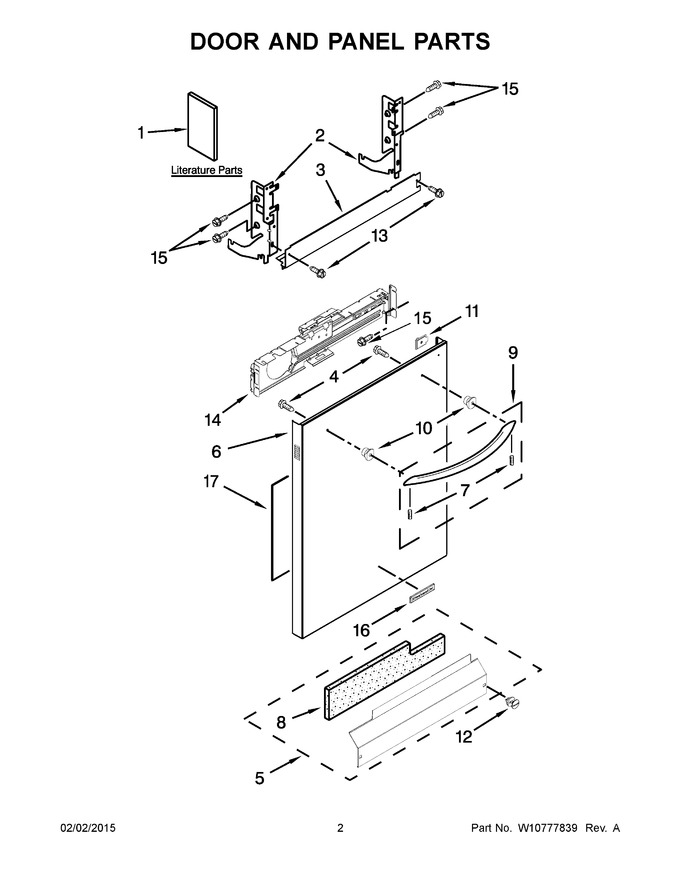

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Third Level Rack And Track Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741197		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10321448)			Immediately	$ 32.88
4	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
5	W10827631		Access Panel (black)   (Replaces: W10369024)			Immediately	$ 195.64
6	WPW10195870		Panel, Front (includes 4, 10, 11 & 16) (stainless)   (Replaces: W10195870)				$ 397.17
7	WPW10307614		Screw   (Replaces: W10307614)			Immediately	$ 7.55
8	W10831329		Insulation, Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
9	W10195738		Handle Assembly (stainless)		Appelez-nous	-
10	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 8.87
11	W10610052		Light Pipe		Appelez-nous	-
12	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 32.59
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
14	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 88.32
15	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 8.26
16	WPW10243391		Nameplate (grey)   (Replaces: W10243391)				$ 58.31
17	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
1A	W10579103		Energy Guide		Appelez-nous	-
1B	W10579120		Use & Care Guide		Appelez-nous	-
1C	W10543820		Tech Sheet, English		Appelez-nous	-
1D	W10543821		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
