01 - Cover Sheet

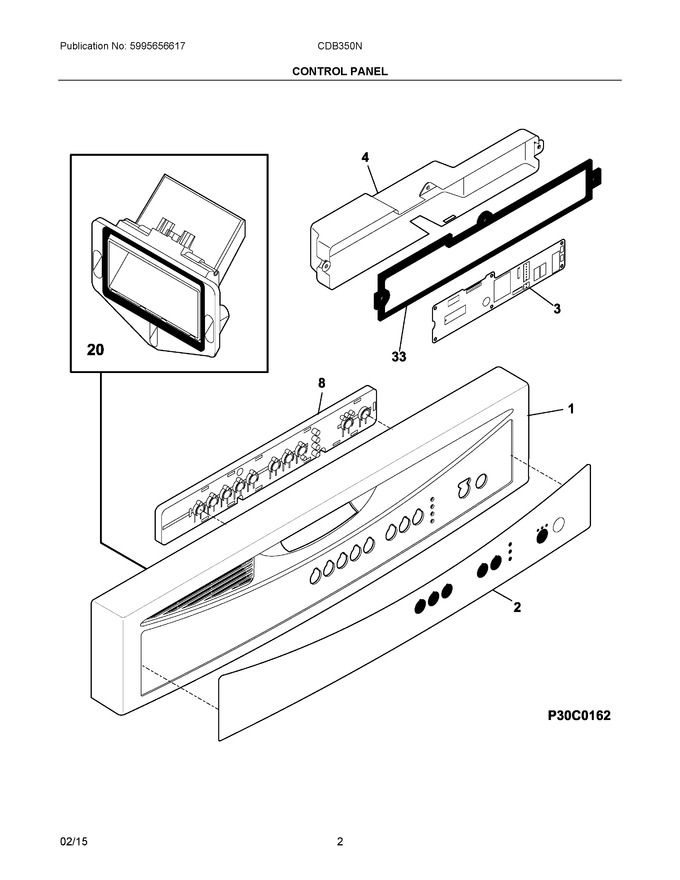

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154788801 | Panel, Console (white) 10 Button |
|
$ 54.92 | |||||
| 2 | 5304488246 | Insert, Control Panel (white) |
|
- | |||||
| 3 | 5304512731 | Board, Control (Replaces: 807024702) |
|
Immediately | $ 138.42 | ||||
| 4 | 154552101 | Cover, Control |
|
$ 57.17 | |||||
| 8 | 154887201 | Switch Assembly, 7 Button |
|
Immediately | $ 83.86 | ||||
| 20 | 154433001 | Vent Assy, Static Dry |
|
$ 50.82 | |||||
| 33 | 154553501 | Gasket, Cover |
|
$ 42.34 | |||||
| NI | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 | ||||
| NI | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| NI | 5304504853 | Harness, Wiring, Main (Replaces: 808420801) |
|
Immediately | $ 126.70 | ||||
| NI | 808612215 | Energy Guide |
|
- | |||||
| NIA | 154793401 | Screw, Dry Duct, (3) |
|
$ 7.09 |
