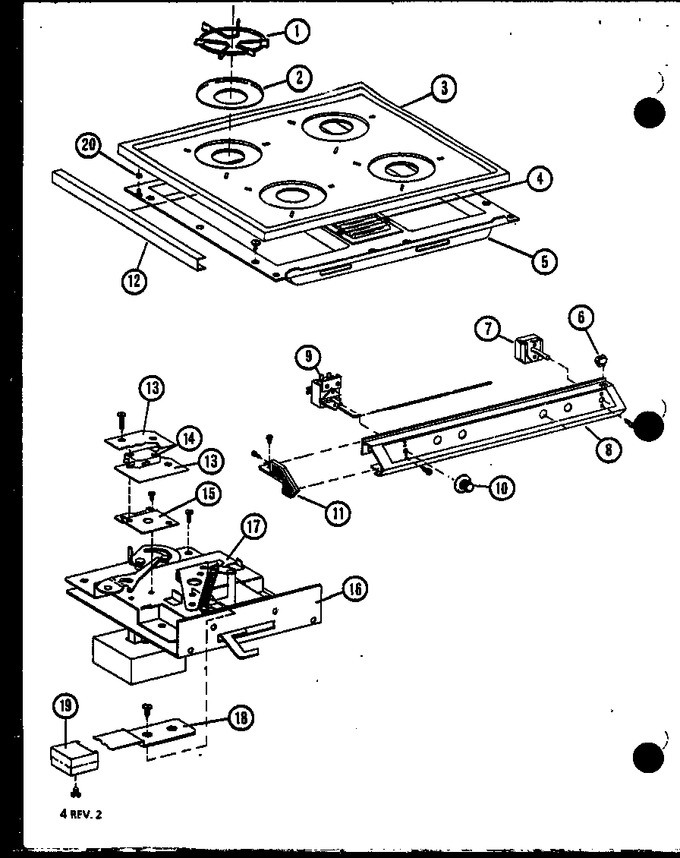

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0705734		Grate, Top Burners		Appelez-nous	-
2	R0710086		Burner Bowl, Chrome		Appelez-nous	-
3	R0703082		Main Top, White		Appelez-nous	-
3	R0703081		Main Top, Almond		Appelez-nous	-
4	R0705746		Vent Plate		Appelez-nous	-
5	R0703103		Burner Box		Appelez-nous	-
6	R0702535		Switch, Rocker		Appelez-nous	-
7	R0702538		Selector Switch		Appelez-nous	-
8	R0705740		Control Panel		Appelez-nous	-
9	R0711016		Thermostat, Oven		Appelez-nous	-
10	R0703532		Knob, Selector		Appelez-nous	-
10	R0703530		Knob, Oven Control		Appelez-nous	-
10	R0703529		Knob, Burner		Appelez-nous	-
11	R0705744		End Cap, Rh		Appelez-nous	-
11	R0705745		End Cap, Lh		Appelez-nous	-
12	R0705730		Trim, Main Top, Rh		Appelez-nous	-
12	R0705731		Trim, Main Top, Lh		Appelez-nous	-
13	R0196021		Insulation		Appelez-nous	-
14	R0702532		Switch		Appelez-nous	-
15	R0705639		Bracket, Switch Mounting		Appelez-nous	-
16	R0705638		Bracket, Latch Mounting		Appelez-nous	-
17	R0705737		Latch Assembly		Appelez-nous	-
18	R0705736		Latch Arm (chrome)		Appelez-nous	-
19	R0181085		Knob, Latch - Black		Appelez-nous	-
20	R0703534		Spacer, Nylon (.14``)		Appelez-nous	-
