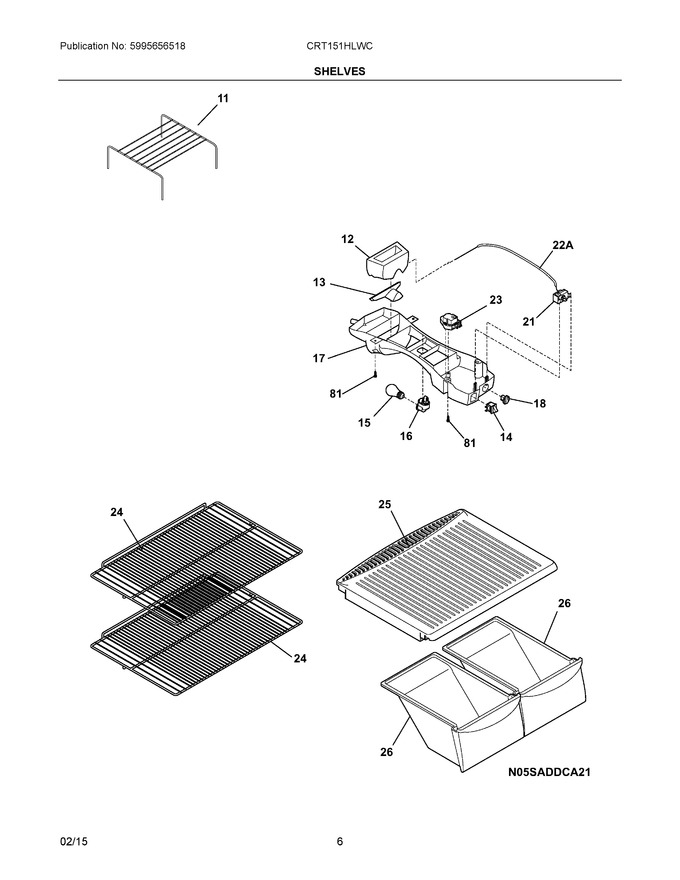

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 5303282284 | Shelf-freezer, "table Type |
|
Immediately | $ 88.05 | ||||
| 12 | 241542001 | Diffuser, Air, Top |
|
Immediately | $ 74.42 | ||||
| 13 | 240362601 | Diffuser, Air, Bottom |
|
Immediately | $ 41.81 | ||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket-light |
|
$ 72.68 | |||||
| 17 | 240368002 | Control Box (Replaces: 240368003) |
|
$ 134.23 | |||||
| 18 | 240360801 | Knob, Temp Control |
|
$ 43.95 | |||||
| 21 | 241537103 | Control, Temperature (Replaces: 5304421256) |
|
Immediately | $ 72.31 | ||||
| 23 | 215846604 | Timer-defrost (Replaces: 241809401) |
|
Immediately | $ 24.58 | ||||
| 24 | 240360906 | Shelf, Sliding, Wire |
|
Immediately | $ 99.35 | ||||
| 25 | 242120501 | Cover, Crisper Pan |
|
Immediately | $ 146.91 | ||||
| 26 | 240364501 | Pan, Crisper, (2) |
|
Immediately | $ 158.45 | ||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 22A | 240468202 | Tube, Sensor Sleeve, 31 Inch, Plastic, White (Replaces: 240468201) |
|
$ 9.10 | |||||
| NI | 242028549 | Energy Guide |
|
- | |||||
| NIA | 5304455649 | Screw, Pan Hd, 6-20 X 0.438 |
|
$ 17.01 | |||||
| NIA | 240568606 | Seal (Replaces: 240568607) |
|
$ 12.76 | |||||
| NIB | 5304535377 | Tape, Aluminum, 3" Wide (Replaces: 240570304) |
|
$ 31.36 | |||||
| NIC | 240388701 | Wiring Harness, Control Box |
|
Immediately | $ 80.09 |
