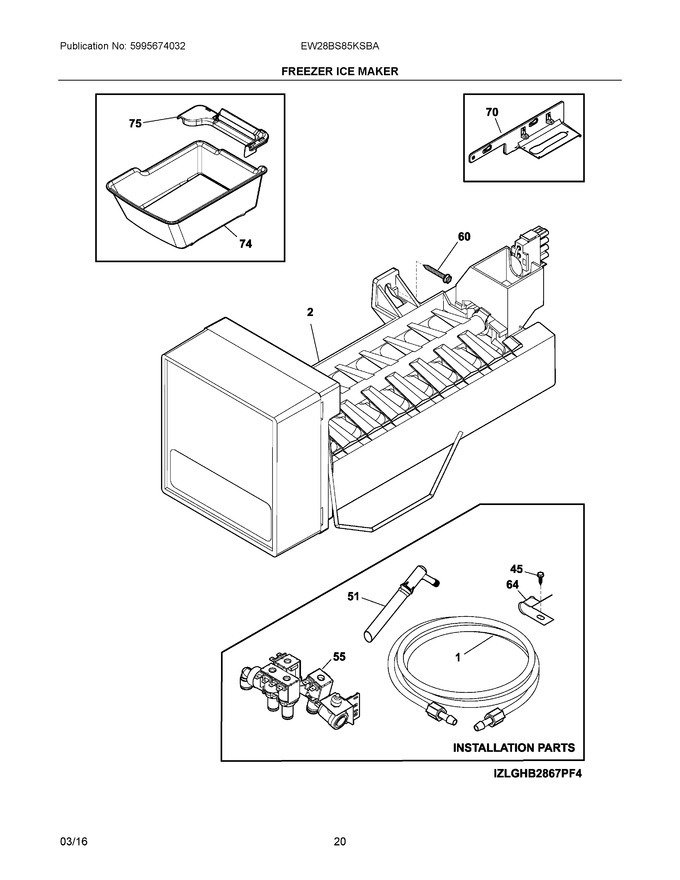

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976436 | Tube-water, 5/16 - 42", Yellow, Sd (Replaces: 218976434) |
|
Immediately | $ 8.51 | ||||
| 2 | 5303918493 | Ice Maker, Radius Cube, 115 V, Service (Replaces: 241798219) |
|
Immediately | $ 231.95 | ||||
| 45 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 55 | 242253002 | Valve-water, Quad Solenoid |
|
Immediately | $ 244.75 | ||||
| 64 | 5304453921 | Clamp-cable |
|
- | |||||
| 70 | 242041701 | Bracket-ice Maker |
|
$ 70.88 | |||||
| 74 | 242127901 | Container-ice |
|
$ 197.17 | |||||
| 75 | 242240101 | Shield, Ice Bucket, Wide |
|
$ 76.92 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIA | 242200102 | Clip, Tubing, 90 Deg Elbow (Replaces: 242200101) |
|
$ 10.63 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIB | 242220105 | Tube-water, .315 - 56", Brown/tan |
|
- |
