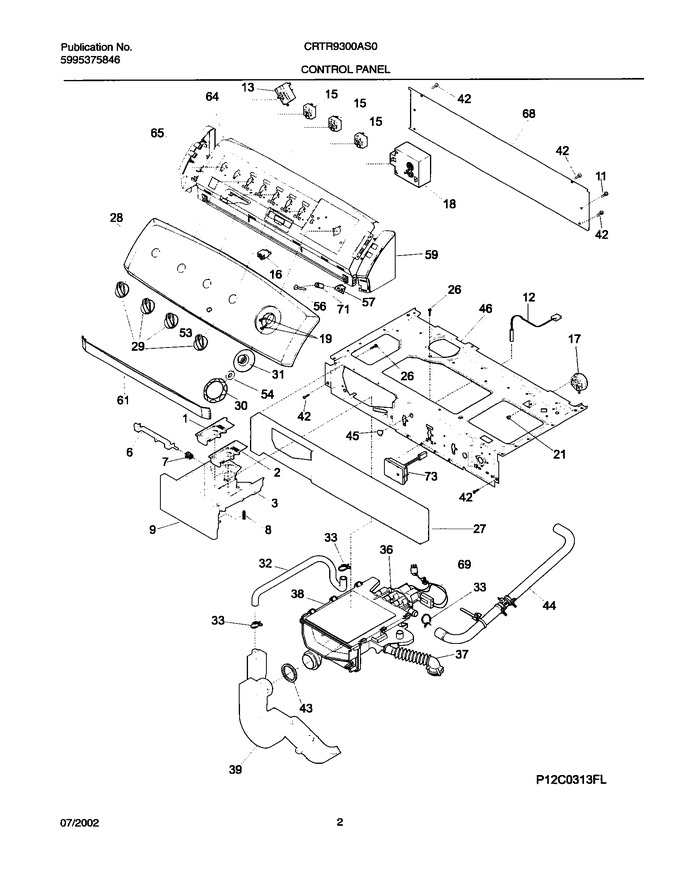

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131271900		Drawer-dispenser		Appelez-nous	-
6	131714900		Latch Handle				$ 44.94
7	131427500		Spring				$ 14.07
8	131373800		Magnet				$ 48.62
9	131729500		Handle-dispenser				$ 150.03
11	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
19	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,56 ,cr/sq Drive				$ 10.46
21	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
26	131823400		Scr 8-18x2.000				$ 1.42
27	131870600		Panel-dispenser Drawer				$ 204.49
28	134155100		Trimplate Crtr9300as		Appelez-nous	-
29	134844410		Knob-rotary-wht ``z`` Cons   (Replaces: 134034900)			Immediately	$ 57.36
30	134034800		Asmy-timer Knob-white				$ 54.13
31	134034700		Pointer-timer				$ 54.60
32	131786100		Hose-dispenser				$ 66.62
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
37	131271600		Hose-tub				$ 90.01
38	131803700		Asmy-detergent Dispenser		Appelez-nous	-
39	131863300		Siphon				$ 30.96
42	131168200		Screw,8-18 X 0.31 ,12			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
45	5303321107		Bushing				$ 4.52
46	131810012		Panel-cont Mtg-wing Bend		Appelez-nous	-
53	131724800		Lens-pilot Light				$ 12.06
54	5308015493		Spacer-timer Shaft				$ 14.36
56	131266310		Screw-end Cap, Poh Ab Wht Hd, 8-18 X 1.250		Appelez-nous	-
57	131197000		Clip-control Panel				$ 13.62
59	134019600		End Cap-rh-wht``z``cons				$ 46.10
61	134019900		Closure-front-wht``z``cons				$ 66.68
64	131993010		Brkt-cont Mtg M520		Appelez-nous	-
65	134019610		End Cap-lh-wht``z`` Cons				$ 46.31
68	131992900		Backsheet``z``cons-fsd/taw				$ 72.66
71	134096100		Spacer-console Mounting				$ 13.55
73	131963800		Beeper Cont Hi W/pig Tail				$ 151.83
F12	131505901		Switch-reed		Appelez-nous	-
F13	131891800		Switch-4 Pos Atc		Appelez-nous	-
F15	131243200		Switch-2pos Temp/bzr/xtra Rins		Appelez-nous	-
F16	131724700		Light-pilot				$ 59.59
F17	131273700		Switch-pressure		Appelez-nous	-
F18	134014700		Timer L Taw Washer				$ 440.44
F36	131974700		Asmy-disp Valve/seal			Immediately	$ 104.10
F44	131899800		Asmy-thermistor/hose/clamp		Appelez-nous	-
F69	131908000		Harness-disp Valve-haw W/atc				$ 98.49
NI	131307900		Clamp-siphon To Bellows				$ 11.34
NI	131931201		Vibration Dampener				$ 14.02
NI	134092200		Harness-console		Appelez-nous	-
NI	131908800		Harness-rear Cons Taw W/atc		Appelez-nous	-
