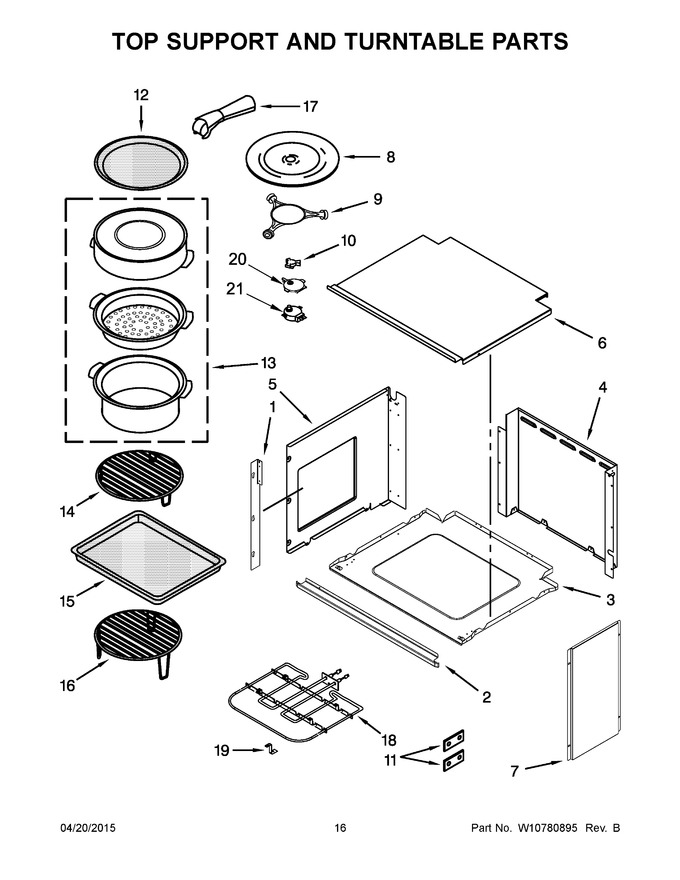

09 - Top Support And Turntable Parts


10 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	461967013712		Trim, Side Microwave (left)		Appelez-nous	-
2	461968973241		Vent, Top Microwave				$ 67.46
3	W10176063		Retainer, Bottom		Appelez-nous	-
4	W10186984		Cover, Rear		Appelez-nous	-
5	W10176065		Retainer, Side (left)		Appelez-nous	-
6	W10175998		Panel, Top Retainer		Appelez-nous	-
7	W10176066		Cover, Service		Appelez-nous	-
8	W11373838		Turntable   (Replaces: 461967721091)			Immediately	$ 70.65
9	W11110134		Ring, Turntable   (Replaces: W10367316)			Immediately	$ 66.60
10	W11179756		Drive, Turntable   (Replaces: W10545578)			Immediately	$ 22.78
11	W10915651		Plate, Cover   (Replaces: 461967451001)			Immediately	$ 76.20
12	W11755098		Plate, Crisp   (Replaces: 461968977491)				$ 70.79
13	W10660052		Steamer   (Replaces: W10120484)			Immediately	$ 25.73
14	W11175831		Rack, Convection   (Replaces: W10748279)				$ 38.47
15	W11512489		Plate, Baking   (Replaces: W10120486)				$ 83.62
16	W10748280		Rack, Grill				$ 64.40
17	W11218702		Handle, Pan   (Replaces: 461968929542)				$ 142.52
18	WPW10387651		Element, Grill   (Replaces: W10387651)				$ 307.58
19	W11724411		Support, Element   (Replaces: 461967753871)			Immediately	$ 51.91
20	W11676353		Adapter, Turntable Motor   (Replaces: 461967753742)				$ 19.59
21	W10911403		Motor, Turntable   (Replaces: 461967848971)			Immediately	$ 105.78
1A	461967013702		Trim, Side Microwave (right)		Appelez-nous	-
5A	W10176064		Retainer, Side (right)		Appelez-nous	-
