SELECT A DIAGRAM

01 - Cover


03 - Wshr Cab,top


05 - Wshr Mtr,hose


07 - Transmission


09 - Control Panel

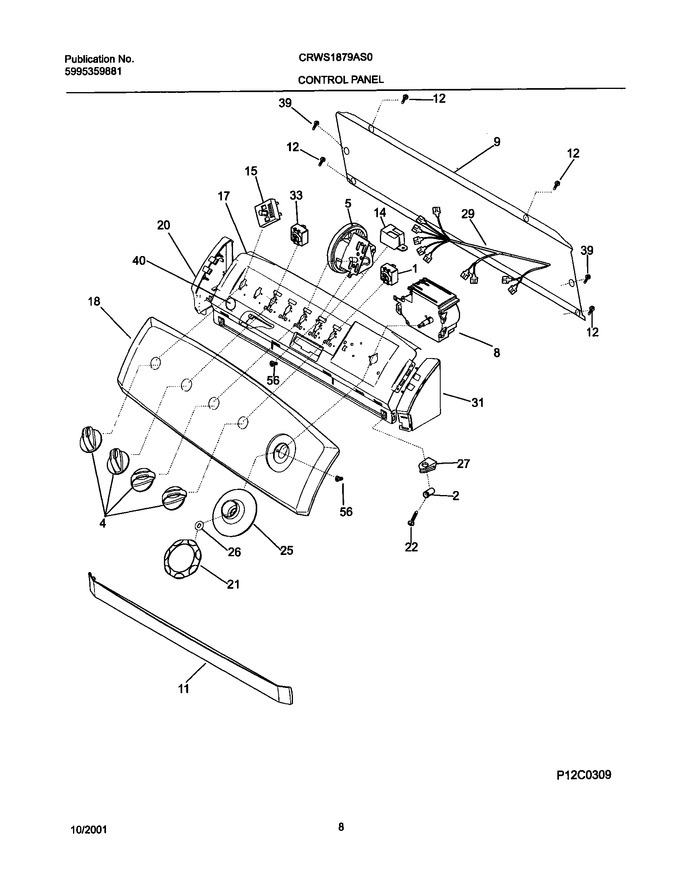

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131893500		Switch-spd 4 Pos Rot-3spd				$ 82.37
2	134096100		Spacer-console Mounting				$ 13.55
4	134844410		Knob-rotary-wht ``z`` Cons   (Replaces: 134034900)			Immediately	$ 57.36
5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
8	134049300		Timer-elec Z W/buzzer				$ 305.13
9	131992910		Backsheet-``z`` Cons-vaw				$ 64.73
11	134019900		Closure-front-wht``z``cons				$ 66.68
12	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
17	131993010		Brkt-cont Mtg M520		Appelez-nous	-
18	134104600		Trimplate Fda1zsz-2		Appelez-nous	-
20	134019610		End Cap-lh-wht``z`` Cons				$ 46.31
21	134034800		Asmy-timer Knob-white				$ 54.13
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	134034700		Pointer-timer				$ 54.60
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
31	134019600		End Cap-rh-wht``z``cons				$ 46.10
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
F14	134086900		Buzzer-non Adjustable		Appelez-nous	-
F15	131858100		Switch-temp 7 Pos Rotary		Appelez-nous	-
F29	134107200		Harness-z-rot		Appelez-nous	-
F33	134047700		Switch-op 4pos		Appelez-nous	-
F40	134040800		Switch-round-on/off				$ 65.92

    View Diagram in Separate Window       Print Part List
